Ball valve
Material corp
PP-H
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN
TKDDM — DUAL BLOCK 3-way ball valve, male socket-weld ends, metric, T-port
DUAL BLOCK® 3-way ball valve with male ends for socket welding, metric series, T-port ball.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

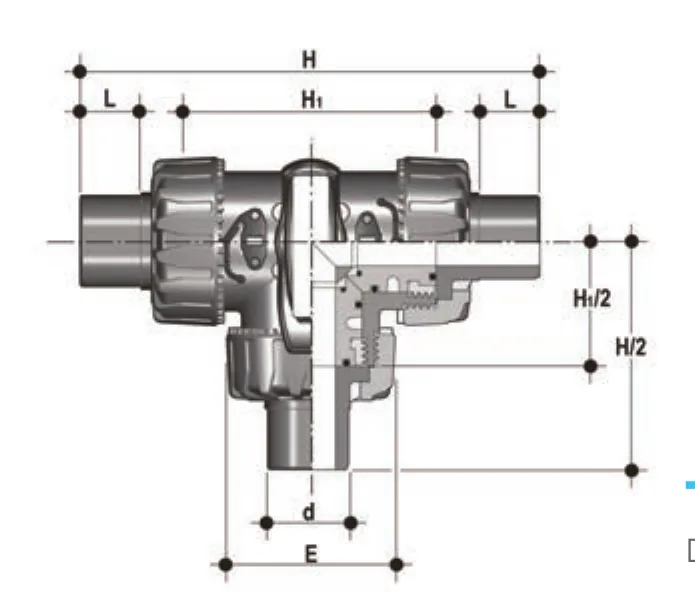

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDDM020E / TKDDM020F | 15 | 20 | 10 | 16 | 205 g | PP-H |
| TKDDM025E / TKDDM025F | 20 | 25 | 10 | 18 | 360 g | PP-H |
| TKDDM032E / TKDDM032F | 25 | 32 | 10 | 20 | 515 g | PP-H |
| TKDDM040E / TKDDM040F | 32 | 40 | 10 | 22 | 835 g | PP-H |
| TKDDM050E / TKDDM050F | 40 | 50 | 10 | 23 | 1100 g | PP-H |
| TKDDM063E / TKDDM063F | 50 | 63 | 10 | 29 | 1830 g | PP-H |
