Ball valve
Material corp
PVC-U
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

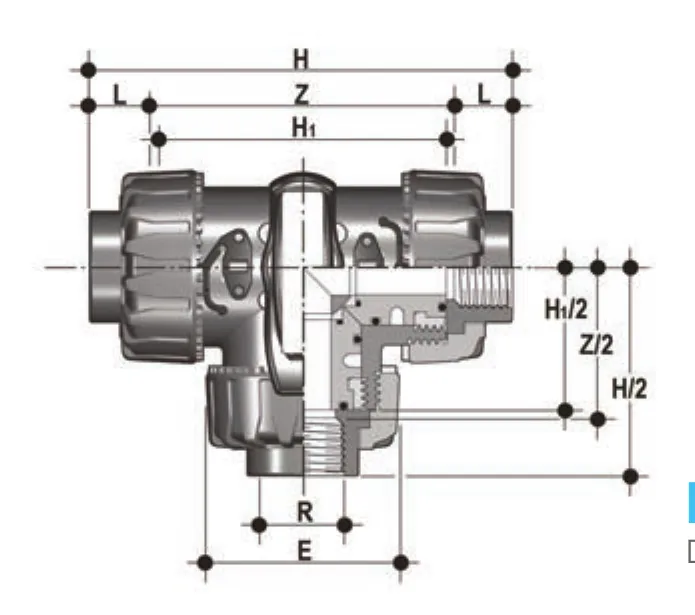

TKDGV — DUAL BLOCK 3-way ball valve with female ends, JIS thread, T-port ball
DUAL BLOCK® 3-way ball valve with female ends, JIS thread, T-port ball
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDGV012E / TKDGV012F | 15 | - | 16 | 16 | 310 g | PVC-U |
| TKDGV034E / TKDGV034F | 20 | - | 16 | 19 | 550 g | PVC-U |
| TKDGV100E / TKDGV100F | 25 | - | 16 | 22 | 790 g | PVC-U |
| TKDGV114E / TKDGV114F | 32 | - | 16 | 25 | 1275 g | PVC-U |
| TKDGV112E / TKDGV112F | 40 | - | 16 | 26 | 1660 g | PVC-U |
| TKDGV200E / TKDGV200F | 50 | - | 16 | 31 | 2800 g | PVC-U |
