Ball valve
Material corp
PP-H
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

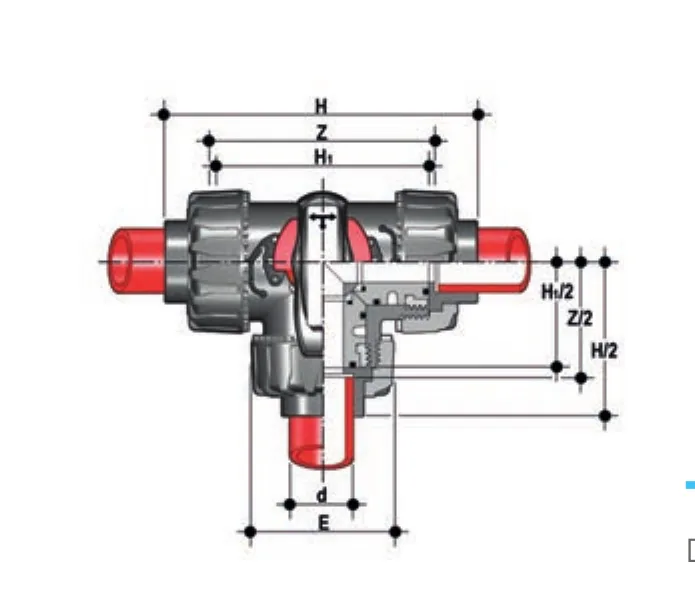

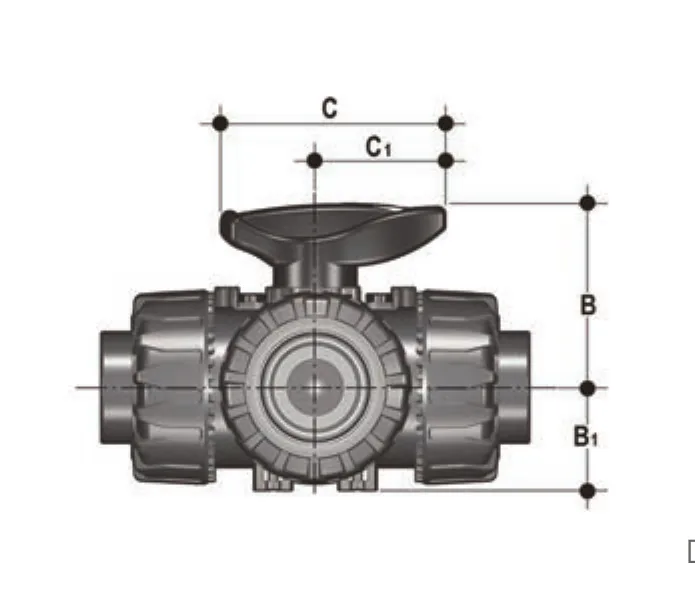

TKDIM — DUAL BLOCK 3-way ball valve, metric plain socket ends, T bore
DUAL BLOCK® 3-way ball valve with metric plain socket ends for socket welding, - T bore.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDIM020E / TKDIM020F | 15 | 20 | 10 | - | 195 g | PP-H |
| TKDIM025E / TKDIM025F | 20 | 25 | 10 | - | 350 g | PP-H |
| TKDIM032E / TKDIM032F | 25 | 32 | 10 | - | 505 g | PP-H |
| TKDIM040E / TKDIM040F | 32 | 40 | 10 | - | 820 g | PP-H |
| TKDIM050E / TKDIM050F | 40 | 50 | 10 | - | 1070 g | PP-H |
| TKDIM063E / TKDIM063F | 50 | 63 | 10 | - | 1795 g | PP-H |
