Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

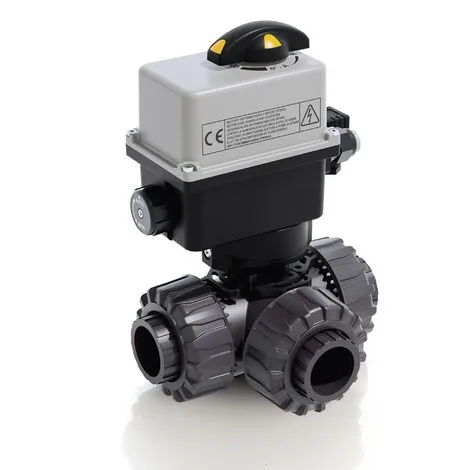

TKDIV/CE — 3 way DUAL BLOCK® valve with female metric ends with electric actuator 24 V AC/DC "T" ball, configuration 1
3 way DUAL BLOCK® valve with female metric ends with electric actuator 24 V AC/DC "T" ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)

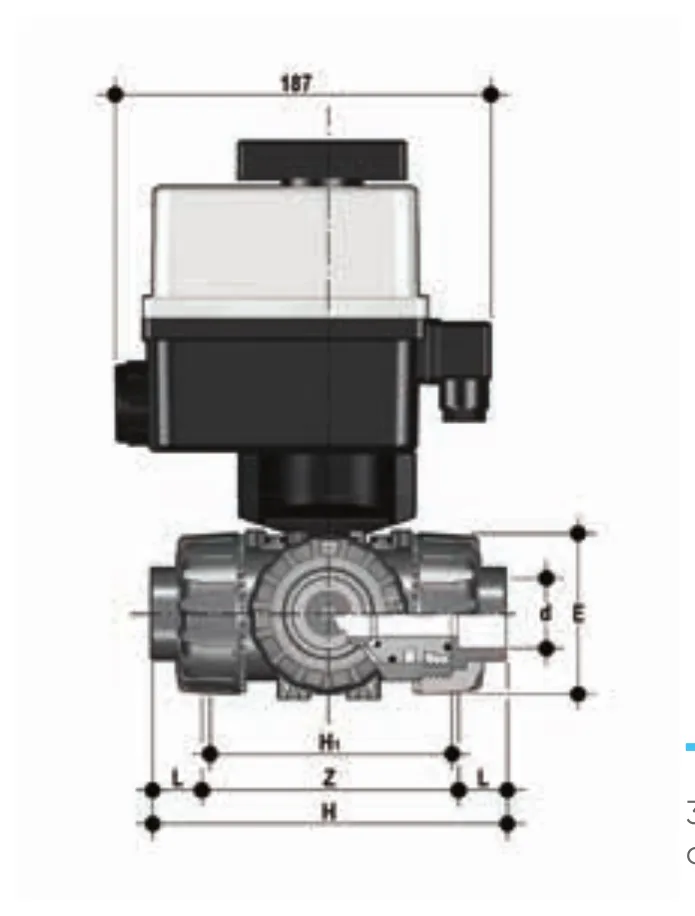

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDIVEL016E1 / TKDIVEL016F1 | 10 | 16 | 16 | 14 | 1843 g | PVC-U |
| TKDIVEL020E1 / TKDIVEL020F1 | 15 | 20 | 16 | 16 | 1843 g | PVC-U |
| TKDIVEL025E1 / TKDIVEL025F1 | 20 | 25 | 16 | 19 | 2076 g | PVC-U |
| TKDIVEL032E1 / TKDIVEL032F1 | 25 | 32 | 16 | 22 | 2299 g | PVC-U |
| TKDIVEL040E1 / TKDIVEL040F1 | 32 | 40 | 16 | 26 | 2880 g | PVC-U |
| TKDIVEL050E1 / TKDIVEL050F1 | 40 | 50 | 16 | 31 | 3242 g | PVC-U |
| TKDIVEL063E1 / TKDIVEL063F1 | 50 | 63 | *10 | 38 | 4362 g | PVC-U |
