Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

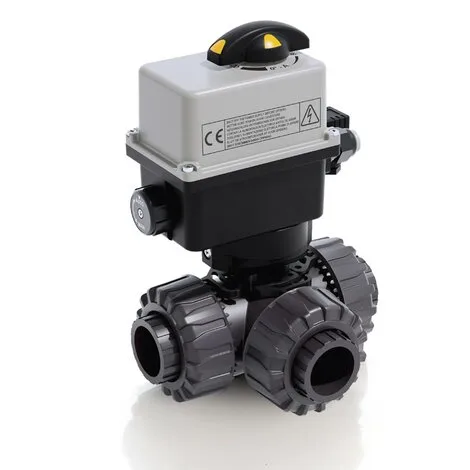

TKDIV/CE — 3 way DUAL BLOCK® valve with female metric ends with multi-volt electric actuator 90-240 V AC 50-60 Hz "T" ball, configuration 1
3 way DUAL BLOCK® valve with female metric ends with multi-volt electric actuator 90-240 V AC 50-60 Hz "T" ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)

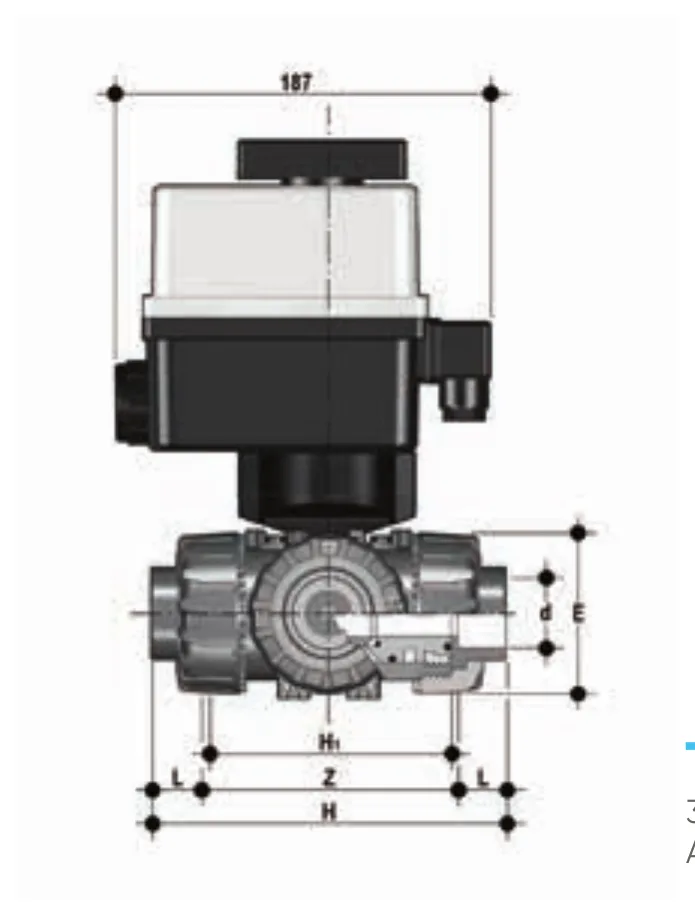

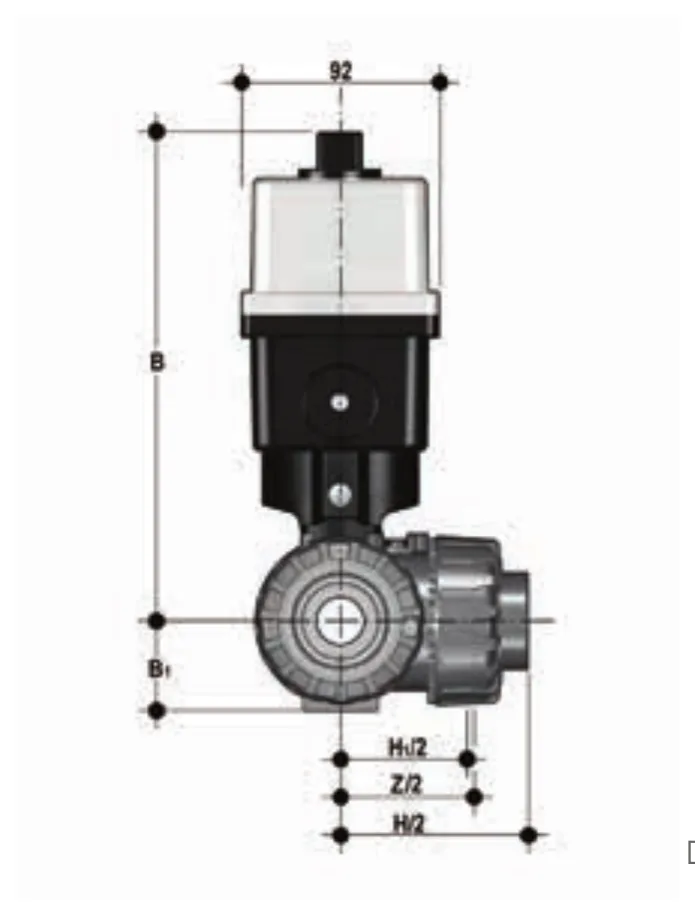

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDIVEM016E1 / TKDIVEM016F1 | 10 | 16 | 16 | 14 | 1843 g | PVC-U |
| TKDIVEM020E1 / TKDIVEM020F1 | 15 | 20 | 16 | 16 | 1843 g | PVC-U |
| TKDIVEM025E1 / TKDIVEM025F1 | 20 | 25 | 16 | 19 | 2076 g | PVC-U |
| TKDIVEM032E1 / TKDIVEM032F1 | 25 | 32 | 16 | 22 | 2299 g | PVC-U |
| TKDIVEM040E1 / TKDIVEM040F1 | 32 | 40 | 16 | 26 | 2880 g | PVC-U |
| TKDIVEM050E1 / TKDIVEM050F1 | 40 | 50 | 16 | 31 | 3242 g | PVC-U |
| TKDIVEM063E1 / TKDIVEM063F1 | 50 | 63 | *10 | 38 | 4362 g | PVC-U |
