Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

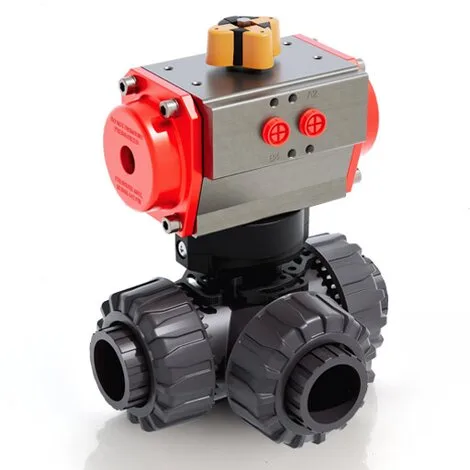

TKDIV/CP SA — 3-way DUAL BLOCK ball valve, female metric ends, pneumatic Single-acting actuator
3 way DUAL BLOCK® ball valve with female metric ends with pneumatic actuator, Single-acting function "T" ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)

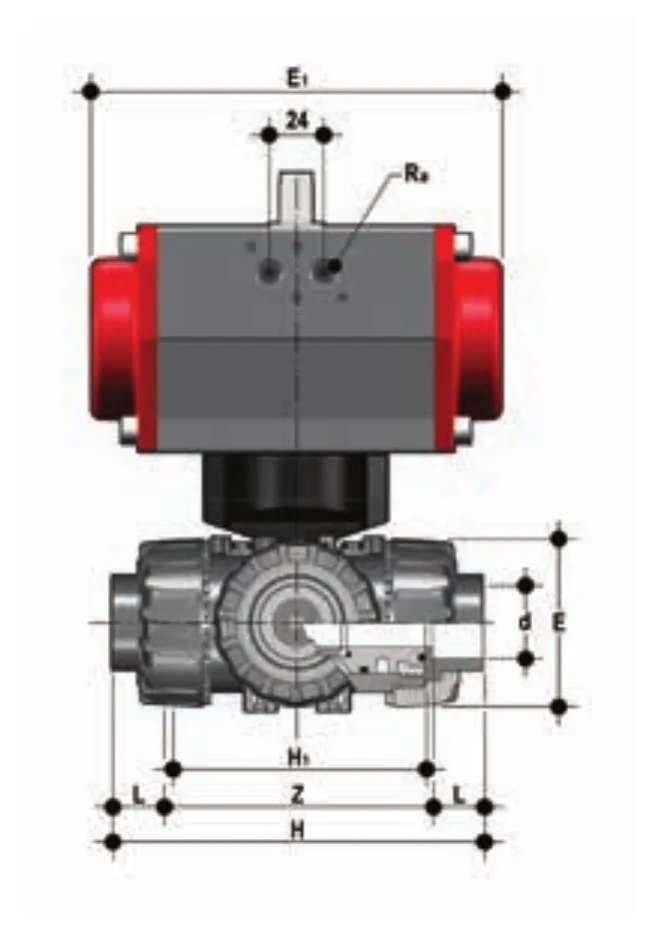

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDIVSA016E1 / TKDIVSA016F1 | 10 | 16 | 16 | 14 | 1543 g | PVC-U |
| TKDIVSA020E1 / TKDIVSA020F1 | 15 | 20 | 16 | 16 | 2143 g | PVC-U |
| TKDIVSA025E1 / TKDIVSA025F1 | 20 | 25 | 16 | 19 | 2386 g | PVC-U |
| TKDIVSA032E1 / TKDIVSA032F1 | 25 | 32 | 16 | 22 | 2659 g | PVC-U |
| TKDIVSA040E1 / TKDIVSA040F1 | 32 | 40 | 16 | 26 | 3113 g | PVC-U |
| TKDIVSA050E1 / TKDIVSA050F1 | 40 | 50 | 16 | 31 | 3460 g | PVC-U |
| TKDIVSA063E1 / TKDIVSA063F1 | 50 | 63 | 16 | 38 | 6154 g | PVC-U |
