Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

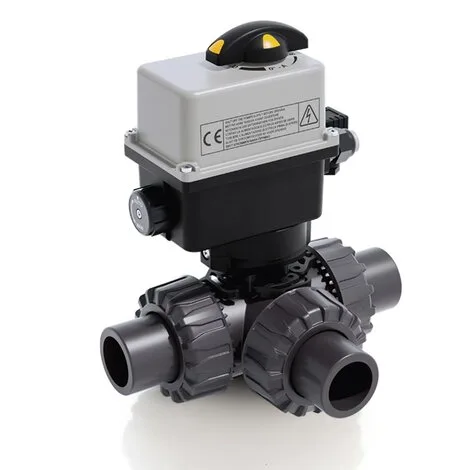

TKDJV/CE — 3 way DUAL BLOCK® ball valve with female ends, JIS series with multi-volt electric actuator 90-240 V AC 50-60 Hz “T” ball, configuration 1
3 way DUAL BLOCK® ball valve with female ends, JIS series with multi-volt electric actuator 90-240 V AC 50-60 Hz “T” ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

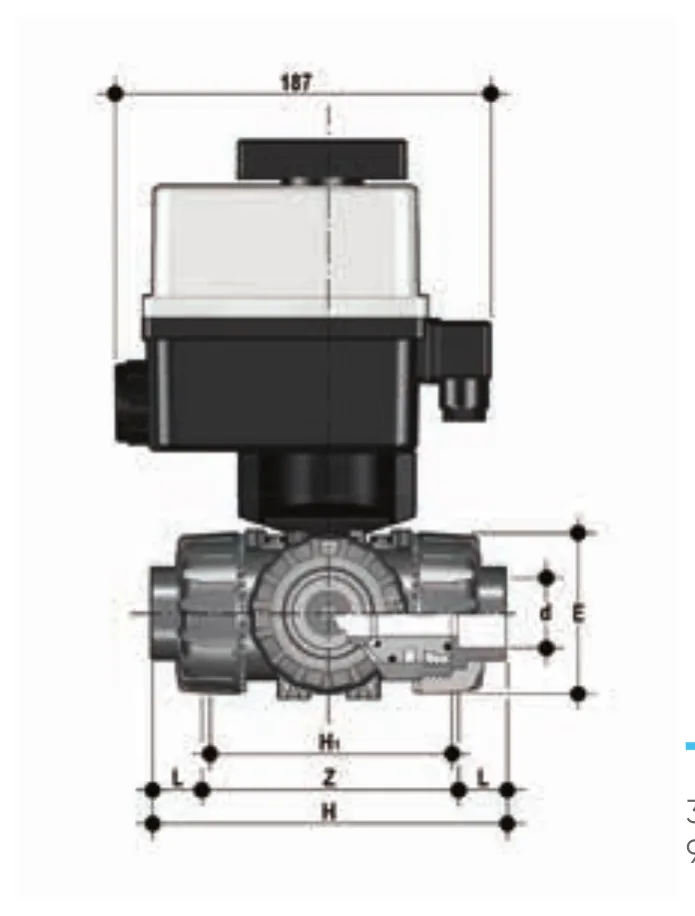

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDJVEM012E1 / TKDJVEM012F1 | 15 | 1/2” | 16 | 30 | 1843 g | PVC-U |
| TKDJVEM034E1 / TKDJVEM034F1 | 20 | 3/4” | 16 | 35 | 2076 g | PVC-U |
| TKDJVEM100E1 / TKDJVEM100F1 | 25 | 1” | 16 | 40 | 2299 g | PVC-U |
| TKDJVEM114E1 / TKDJVEM114F1 | 32 | 1” 1/4 | 16 | 44 | 2880 g | PVC-U |
| TKDJVEM112E1 / TKDJVEM112F1 | 40 | 1” 1/2 | 16 | 55 | 3242 g | PVC-U |
| TKDJVEM200E1 / TKDJVEM200F1 | 50 | 2” | *10 | 63 | 4362 g | PVC-U |
