Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

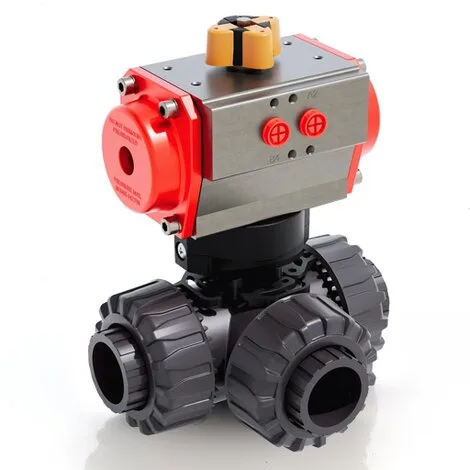

TKDLV/CP DA — 3-way DUAL BLOCK ball valve, female BS-series ends, pneumatic Double-Acting actuator
3 way DUAL BLOCK® ball valve with female ends, BS series with pneumatic actuator, Double-Acting function. “T” ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDLVDA038E1 / TKDLVDA038F1 | 10 | - | 16 | 14.7 | 1413 g | PVC-U |
| TKDLVDA012E1 / TKDLVDA012F1 | 15 | - | 16 | 17 | 1943 g | PVC-U |
| TKDLVDA034E1 / TKDLVDA034F1 | 20 | - | 16 | 19 | 2186 g | PVC-U |
| TKDLVDA100E1 / TKDLVDA100F1 | 25 | - | 16 | 22.5 | 2409 g | PVC-U |
| TKDLVDA114E1 / TKDLVDA114F1 | 32 | - | 16 | 26 | 2913 g | PVC-U |
| TKDLVDA112E1 / TKDLVDA112F1 | 40 | - | 16 | 30.2 | 3260 g | PVC-U |
| TKDLVDA200E1 / TKDLVDA200F1 | 50 | - | 16 | 36.2 | 5684 g | PVC-U |
