Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
7 dimensiuni DN

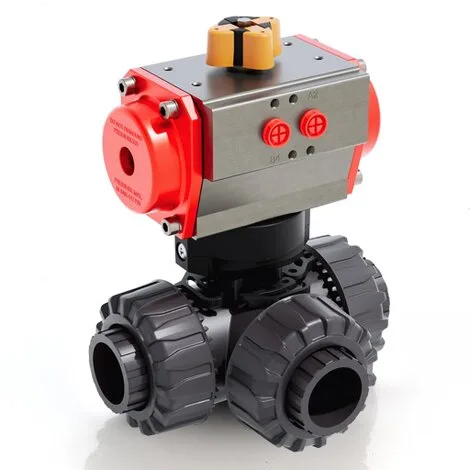

TKDLV/CP SA — 3-way DUAL BLOCK ball valve, female BS-series ends, pneumatic Single-acting actuator
3 way DUAL BLOCK® ball valve with female ends, BS series with pneumatic actuator, Single-acting function. “T” ball, configuration 1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDLVSA038E1 / TKDLVSA038F1 | 10 | - | 16 | 14.7 | 1543 g | PVC-U |
| TKDLVSA012E1 / TKDLVSA012F1 | 15 | - | 16 | 17 | 2143 g | PVC-U |
| TKDLVSA034E1 / TKDLVSA034F1 | 20 | - | 16 | 19 | 2386 g | PVC-U |
| TKDLVSA100E1 / TKDLVSA100F1 | 25 | - | 16 | 22.5 | 2659 g | PVC-U |
| TKDLVSA114E1 / TKDLVSA114F1 | 32 | - | 16 | 26 | 3113 g | PVC-U |
| TKDLVSA112E1 / TKDLVSA112F1 | 40 | - | 16 | 30.2 | 3460 g | PVC-U |
| TKDLVSA200E1 / TKDLVSA200F1 | 50 | - | 16 | 36.2 | 6154 g | PVC-U |
