Ball valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

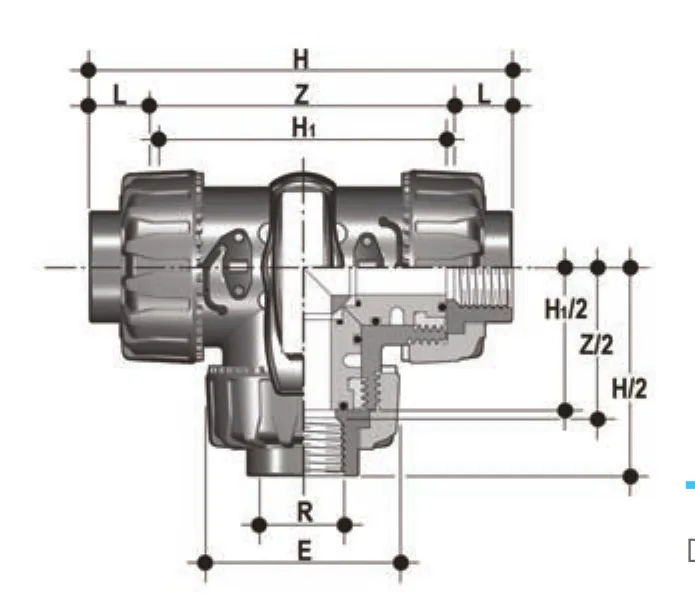

TKDNC — DUAL BLOCK 3-way ball valve, NPT threaded female ends, T-port ball
DUAL BLOCK® 3-way ball valve with female ends, NPT thread, T-port ball.
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| TKDNC012E / TKDNC012F | 15 | - | 16 | 18 | 310 g | PVC-C |
| TKDNC034E / TKDNC034F | 20 | - | 16 | 18 | 550 g | PVC-C |
| TKDNC100E / TKDNC100F | 25 | - | 16 | 22.6 | 790 g | PVC-C |
| TKDNC114E / TKDNC114F | 32 | - | 16 | 25.1 | 1275 g | PVC-C |
| TKDNC112E / TKDNC112F | 40 | - | 16 | 24.7 | 1660 g | PVC-C |
| TKDNC200E / TKDNC200F | 50 | - | 16 | 29.6 | 2800 g | PVC-C |
