Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

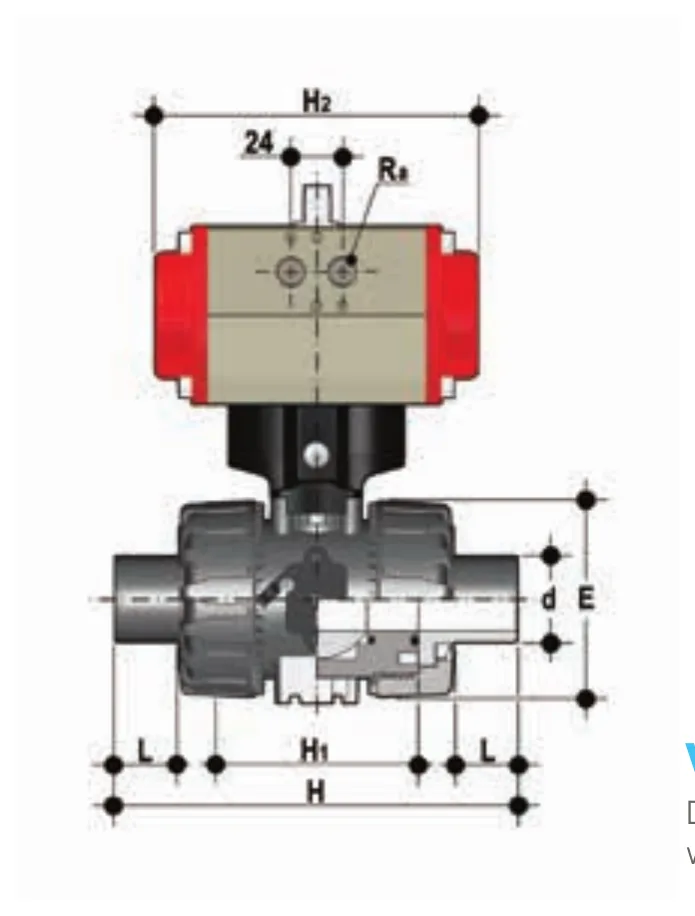

VKDBF/CP DA — DUAL BLOCK ball valve, long spigot male ends PVDF SDR21 for head welding (CVDF), pneumatic actuator, Double-Acting
DUAL BLOCK® ball valve with long spigot male ends in PVDF SDR21 for head welding (CVDF) with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBFDA020F | 15 | 20 | 16 | 41 | 1195 g | PVDF |
| VKDBFDA025F | 20 | 25 | 16 | 52 | 1533 g | PVDF |
| VKDBFDA032F | 25 | 32 | 16 | 55 | 1693 g | PVDF |
| VKDBFDA040F | 32 | 40 | 16 | 56 | 2591 g | PVDF |
| VKDBFDA050F | 40 | 50 | 16 | 58 | 2926 g | PVDF |
| VKDBFDA063F | 50 | 63 | 16 | 66 | 3711 g | PVDF |
