Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
3 dimensiuni DN

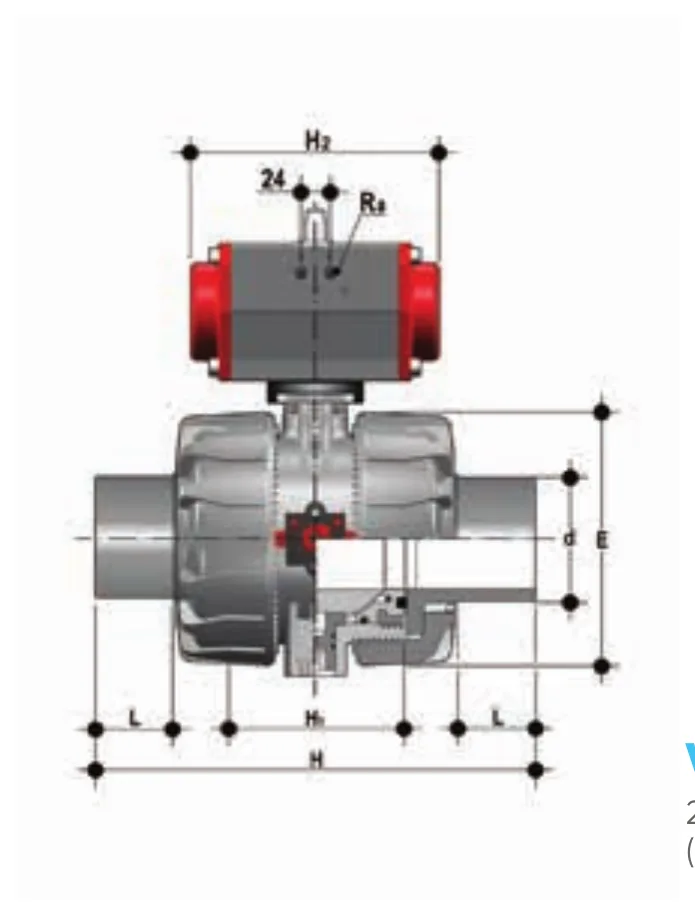

VKDBF/CP NO — 2 way DUAL BLOCK ball valve, long spigot male ends PVDF SDR21 for head/IR welding, pneumatic actuator Normally Open
2 way DUAL BLOCK® ball valve with long spigot male ends in PVDF SDR21 for head welding/IR (CVDF) with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBFNO075F | 65 | 75 | 10 | 71 | 8443 g | PVDF |
| VKDBFNO090F | 80 | 90 | 10 | 88 | 13840 g | PVDF |
| VKDBFNO110F | 100 | 110 | 10 | 92 | 20790 g | PVDF |
