Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN
VKDBF/CP NO — DUAL BLOCK ball valve, long spigot male ends PVDF SDR21 for head welding (CVDF), pneumatic actuator, Normally Open
DUAL BLOCK® ball valve with long spigot male ends in PVDF SDR21 for head welding (CVDF) with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

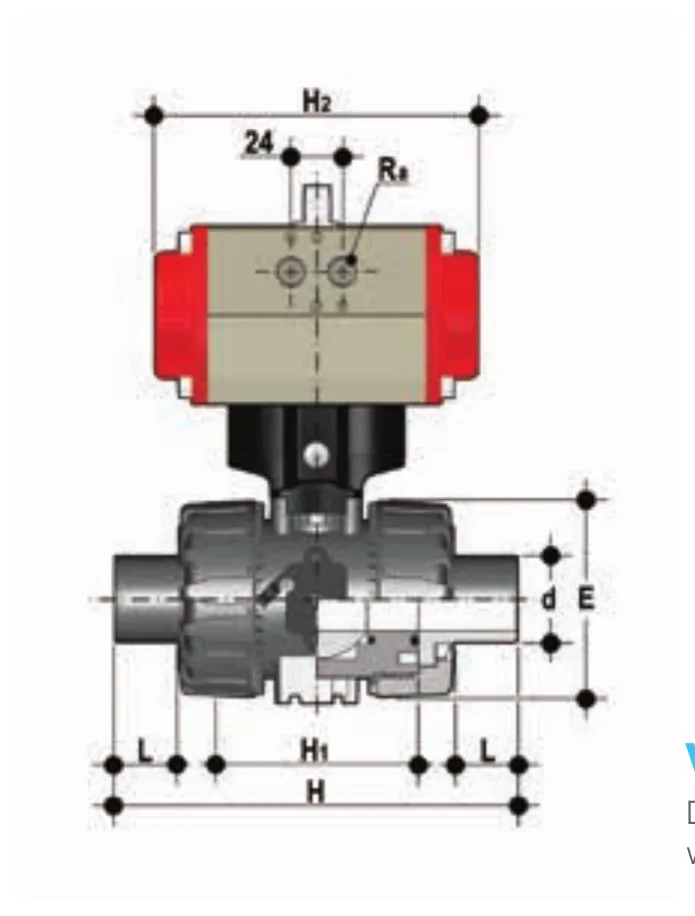

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBFNO020F | 15 | 20 | 16 | 16 | 1255 g | PVDF |
| VKDBFNO025F | 20 | 25 | 16 | 18 | 1643 g | PVDF |
| VKDBFNO032F | 25 | 32 | 16 | 20 | 1803 g | PVDF |
| VKDBFNO040F | 32 | 40 | 16 | 22 | 2791 g | PVDF |
| VKDBFNO050F | 40 | 50 | 16 | 23 | 3126 g | PVDF |
| VKDBFNO063F | 50 | 63 | 16 | 29 | 3911 g | PVDF |
