Ball valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
3 dimensiuni DN
VKDBF — DUAL BLOCK 2-way ball valve, long spigot male ends in PVDF SDR 21 for butt welding/IR
DUAL BLOCK® 2-way ball valve with long spigot male ends in PVDF SDR 21 for butt welding/IR (CVDF)
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)

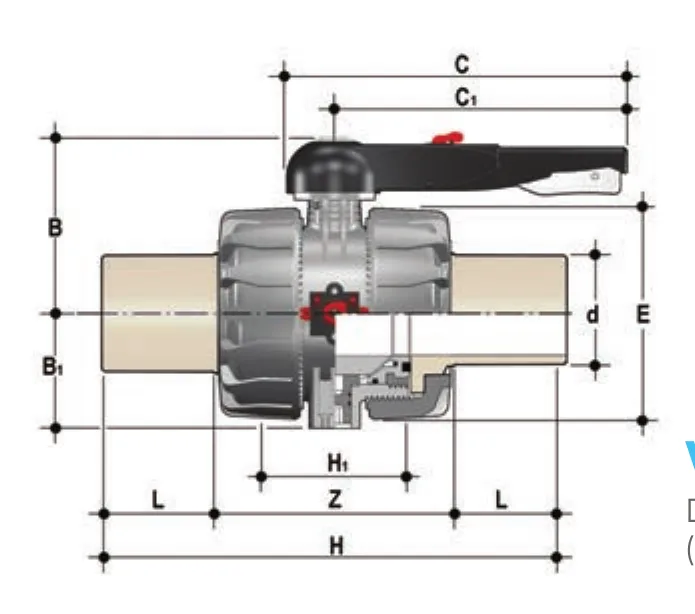

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBF075F | 65 | 75 | 16 | 44 | 4700 g | PVDF |
| VKDBF090F | 80 | 90 | 16 | 51 | 7150 g | PVDF |
| VKDBF110F | 100 | 110 | 16 | 61 | 11300 g | PVDF |
