Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
3 dimensiuni DN

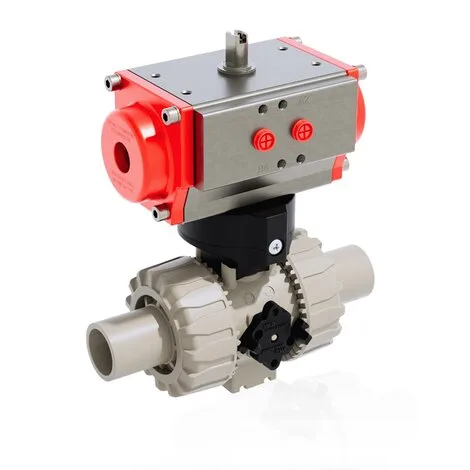

VKDBM/CP DA — 2-way DUAL BLOCK ball valve, long spigot male ends PP-H SDR21 for head welding (CVDM), pneumatic actuator, Double-Acting
2 way DUAL BLOCK® ball valve with long spigot male ends in PP-H SDR21 for head welding (CVDM) with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)

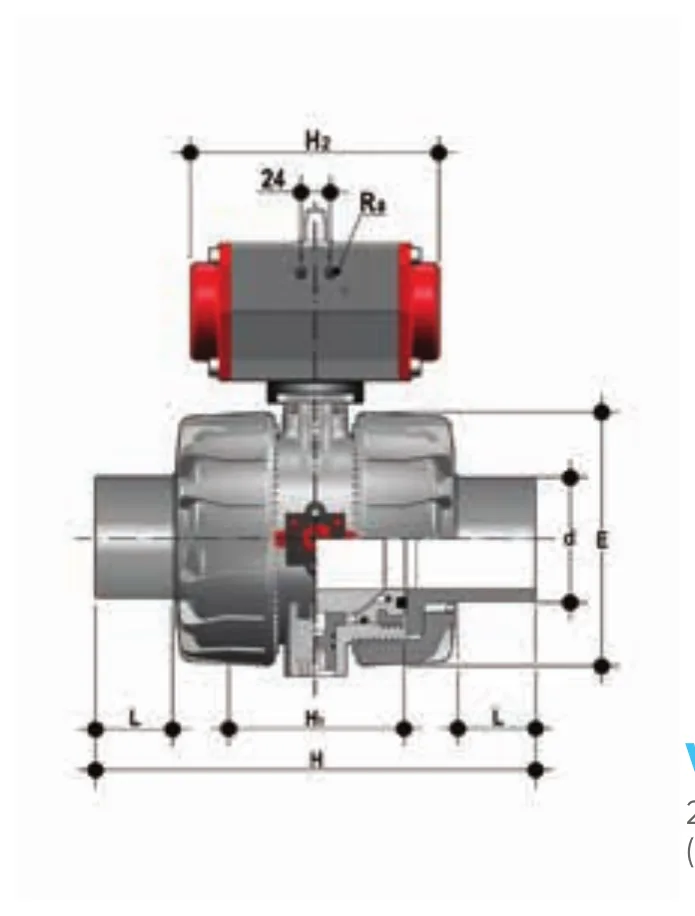

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBMDA075E / VKDBMDA075F | 65 | 75 | 10 | 71 | 4110 g | PP-H |
| VKDBMDA090E / VKDBMDA090F | 80 | 90 | 10 | 88 | 7400 g | PP-H |
| VKDBMDA110E / VKDBMDA110F | 100 | 110 | 10 | 92 | 11245 g | PP-H |
