Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN
VKDBM/CP NC — DUAL BLOCK ball valve, long spigot male ends PP-H SDR21 for head welding (CVDM), pneumatic actuator, Normally Closed
DUAL BLOCK® ball valve with long spigot male ends in PP-H SDR21 for head welding (CVDM) with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

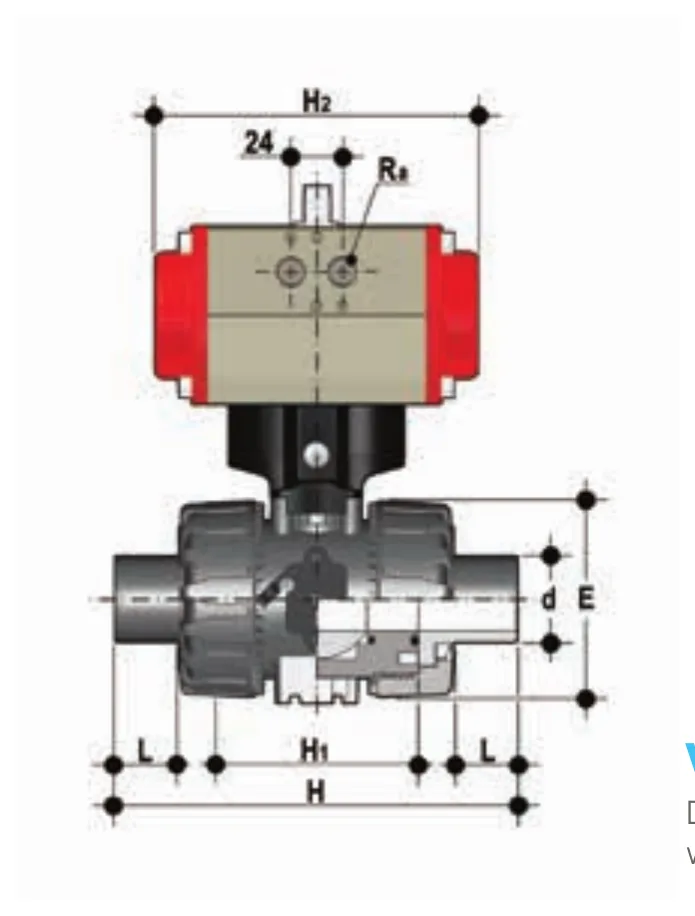

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBMNC020E / VKDBMNC020F | 15 | - | 10 | 41 | 1145 g | PP-H |
| VKDBMNC025E / VKDBMNC025F | 20 | - | 10 | 52 | 1471 g | PP-H |
| VKDBMNC032E / VKDBMNC032F | 25 | - | 10 | 55 | 1551 g | PP-H |
| VKDBMNC040E / VKDBMNC040F | 32 | - | 10 | 56 | 2456 g | PP-H |
| VKDBMNC050E / VKDBMNC050F | 40 | - | 10 | 58 | 2658 g | PP-H |
| VKDBMNC063E / VKDBMNC063F | 50 | - | 10 | 66 | 3107 g | PP-H |
