Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
3 dimensiuni DN

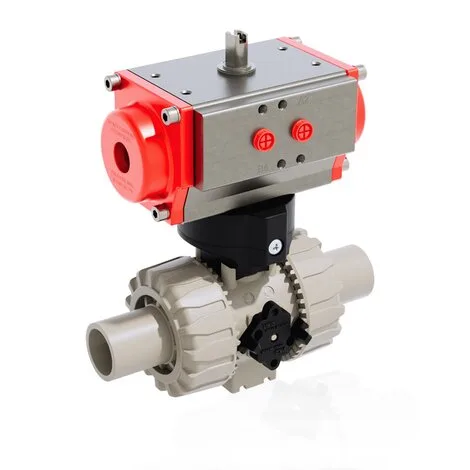

VKDBM/CP NO — 2-way DUAL BLOCK ball valve, long spigot male ends PP-H SDR21 for head welding (CVDM), pneumatic actuator, Normally Open
2 way DUAL BLOCK® ball valve with long spigot male ends in PP-H SDR21 for head welding (CVDM) with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)

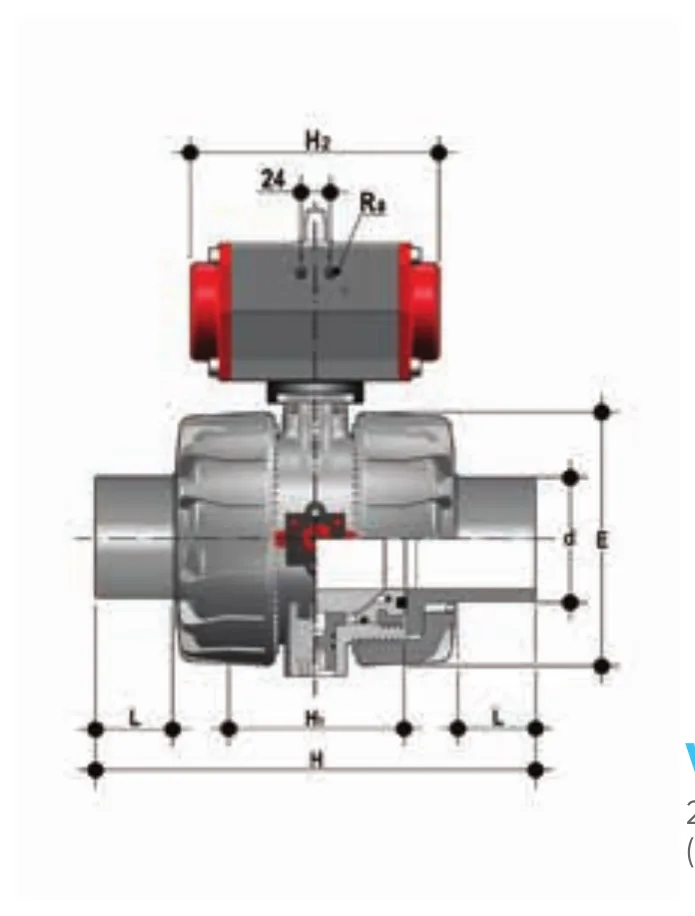

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDBMNO075E / VKDBMNO075F | 65 | 75 | 10 | 71 | 5880 g | PP-H |
| VKDBMNO090E / VKDBMNO090F | 80 | 90 | 10 | 88 | 9330 g | PP-H |
| VKDBMNO110E / VKDBMNO110F | 100 | 110 | 10 | 92 | 13865 g | PP-H |
