Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN
VKDDF/CE 90-240 V AC — DUAL BLOCK ball valve, male solvent-weld PVDF, multi-volt electric actuator
DUAL BLOCK® ball valve with male ends for socket welding, metric series with multi-volt electric actuator 90-240 V AC 50-60 Hz
Caracteristici Tehnice
* PN16 upon request
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

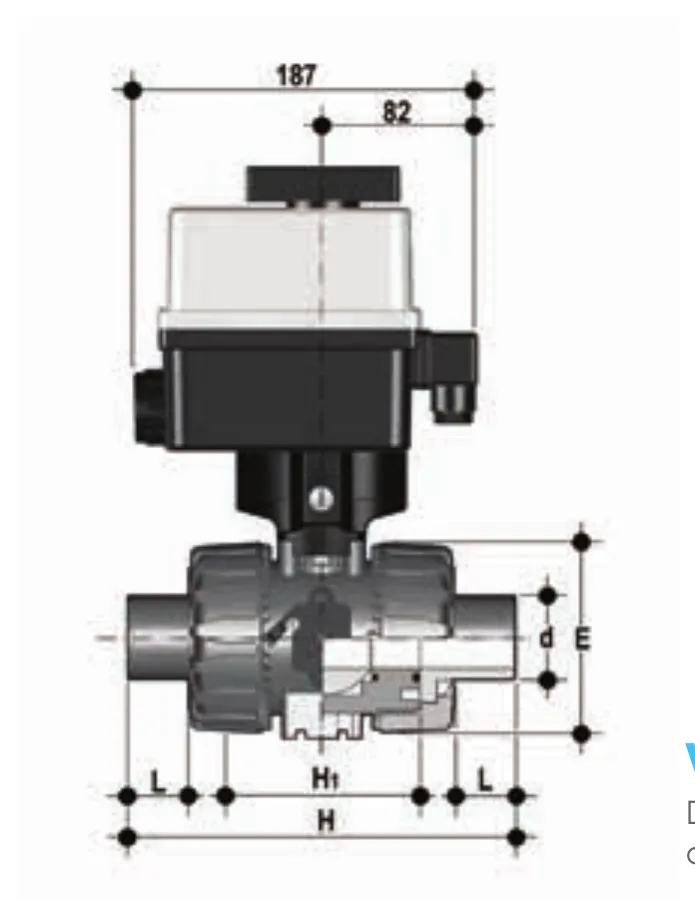

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDDFEM020F | 15 | 20 | 16 | 16 | 1825 g | PVDF |
| VKDDFEM025F | 20 | 25 | 16 | 18 | 1963 g | PVDF |
| VKDDFEM032F | 25 | 32 | 16 | 20 | 2123 g | PVDF |
| VKDDFEM040F | 32 | 40 | 16 | 22 | 2491 g | PVDF |
| VKDDFEM050F | 40 | 50 | 16 | 23 | 2826 g | PVDF |
| VKDDFEM063F | 50 | 63 | *10 | 29 | 3611 g | PVDF |
