Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

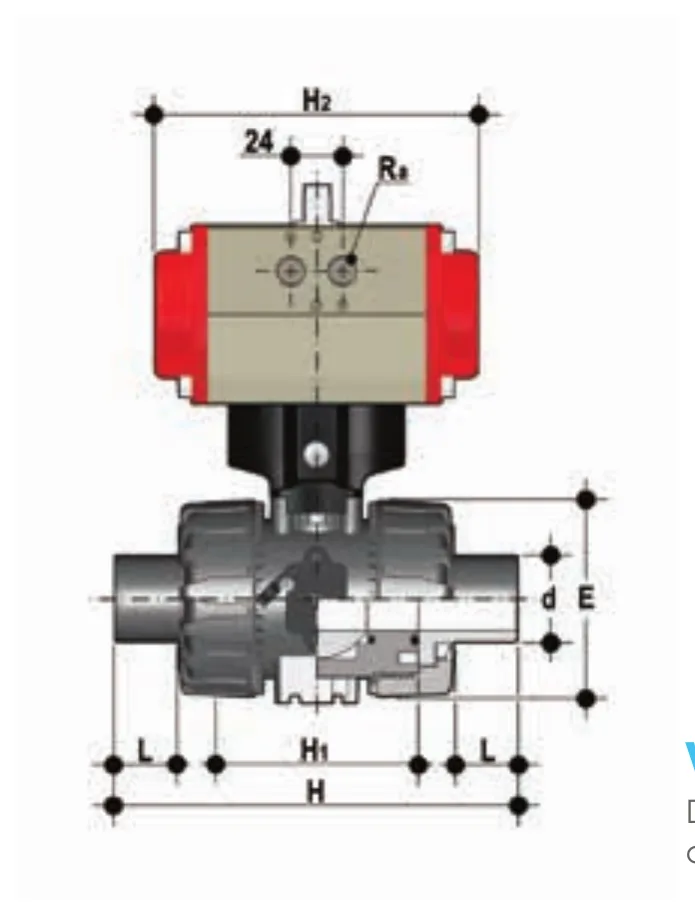

VKDDF/CP DA — DUAL BLOCK ball valve with male ends for socket welding, metric series, pneumatic actuator, Double-Acting
DUAL BLOCK® ball valve with male ends for socket welding, metric series with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDDFDA020F | 15 | 20 | 16 | 16 | 1195 g | PVDF |
| VKDDFDA025F | 20 | 25 | 16 | 18 | 1533 g | PVDF |
| VKDDFDA032F | 25 | 32 | 16 | 20 | 1693 g | PVDF |
| VKDDFDA040F | 32 | 40 | 16 | 22 | 2591 g | PVDF |
| VKDDFDA050F | 40 | 50 | 16 | 23 | 2926 g | PVDF |
| VKDDFDA063F | 50 | 63 | 16 | 29 | 3711 g | PVDF |
