Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
3 dimensiuni DN
VKDDF/CP NC — DUAL BLOCK ball valve, male socket weld metric series, pneumatic actuator Normally Closed
DUAL BLOCK® ball valve with male ends for socket welding, metric series with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)

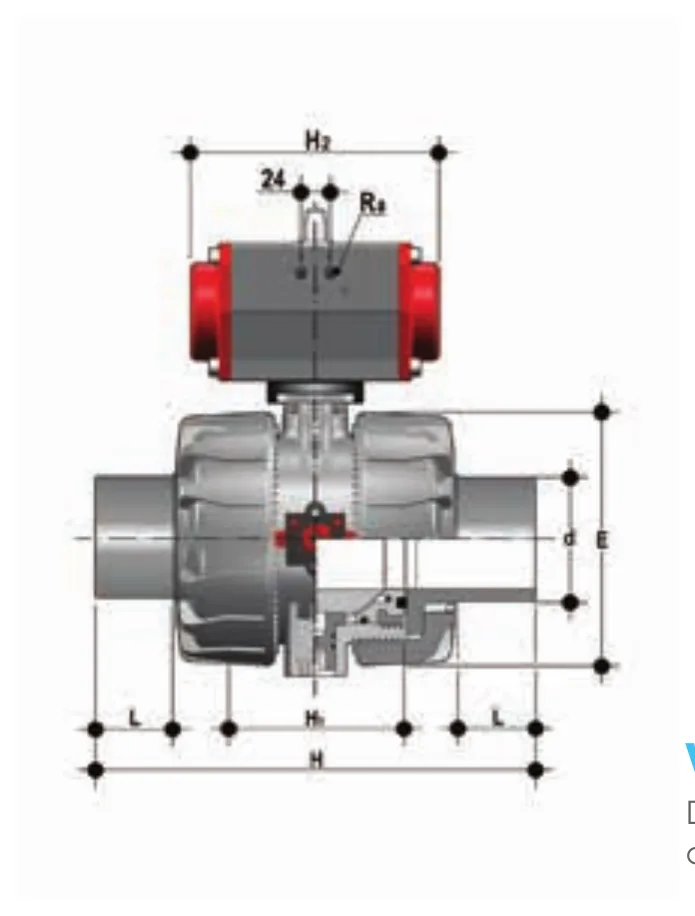

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDDFNC075F | 65 | 75 | 10 | 36.5 | 8443 g | PVDF |
| VKDDFNC090F | 80 | 90 | 10 | 37.5 | 13840 g | PVDF |
| VKDDFNC110F | 100 | 110 | 10 | 42.5 | 20790 g | PVDF |
