Ball valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
6 dimensiuni DN
VKDDF — DUAL BLOCK 2-way ball valve, male ends for socket welding
DUAL BLOCK® 2-way ball valve with male ends for socket welding, metric series
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România

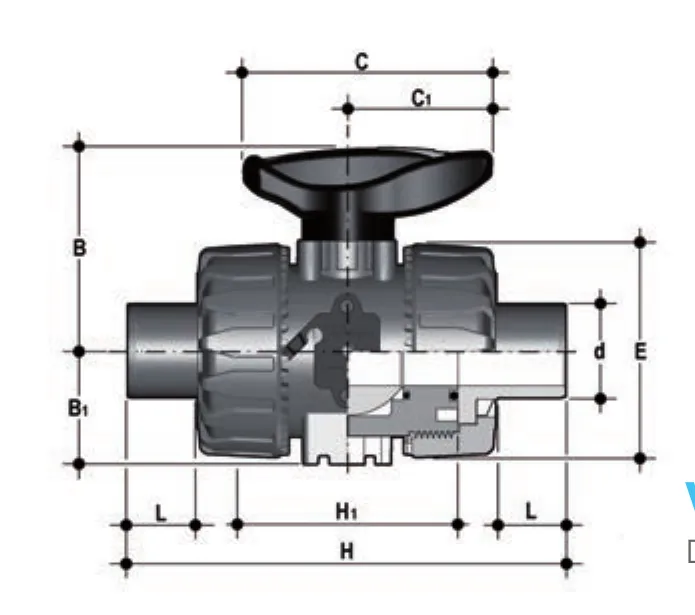

Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDDF020F | 15 | 20 | 16 | 16 | 299 g | PVDF |
| VKDDF025F | 20 | 25 | 16 | 18 | 466 g | PVDF |
| VKDDF032F | 25 | 32 | 16 | 20 | 604 g | PVDF |
| VKDDF040F | 32 | 40 | 16 | 22 | 951 g | PVDF |
| VKDDF050F | 40 | 50 | 16 | 23 | 1284 g | PVDF |
| VKDDF063F | 50 | 63 | 16 | 29 | 2229 g | PVDF |
