Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
7 dimensiuni DN
VKDIF/CE 90-240 V AC — DUAL BLOCK ball valve, female solvent-weld PVDF, multi-volt electric actuator
DUAL BLOCK® ball valve with female ends for socket welding, metric series with multi-volt electric actuator 90-240 V AC 50-60 Hz
Caracteristici Tehnice
* PN16 upon request
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)

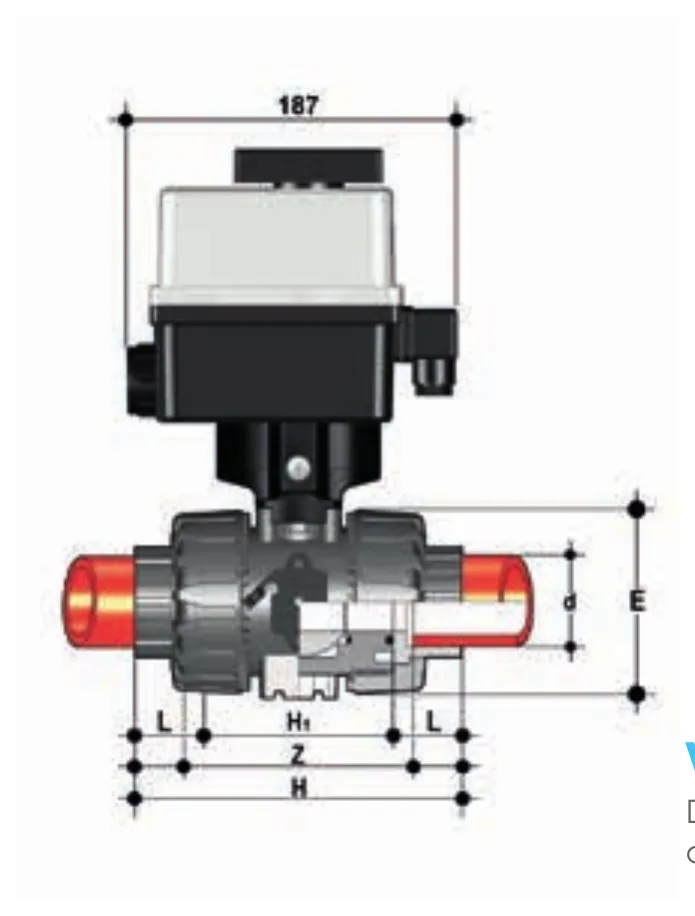

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDIFEM016F | 10 | 16 | 16 | 14 | 1830 g | PVDF |
| VKDIFEM020F | 15 | 20 | 16 | 15 | 1825 g | PVDF |
| VKDIFEM025F | 20 | 25 | 16 | 17 | 1963 g | PVDF |
| VKDIFEM032F | 25 | 32 | 16 | 19 | 2123 g | PVDF |
| VKDIFEM040F | 32 | 40 | 16 | 23 | 2491 g | PVDF |
| VKDIFEM050F | 40 | 50 | 16 | 24 | 2826 g | PVDF |
| VKDIFEM063F | 50 | 63 | *10 | 28 | 3611 g | PVDF |
