Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
7 dimensiuni DN

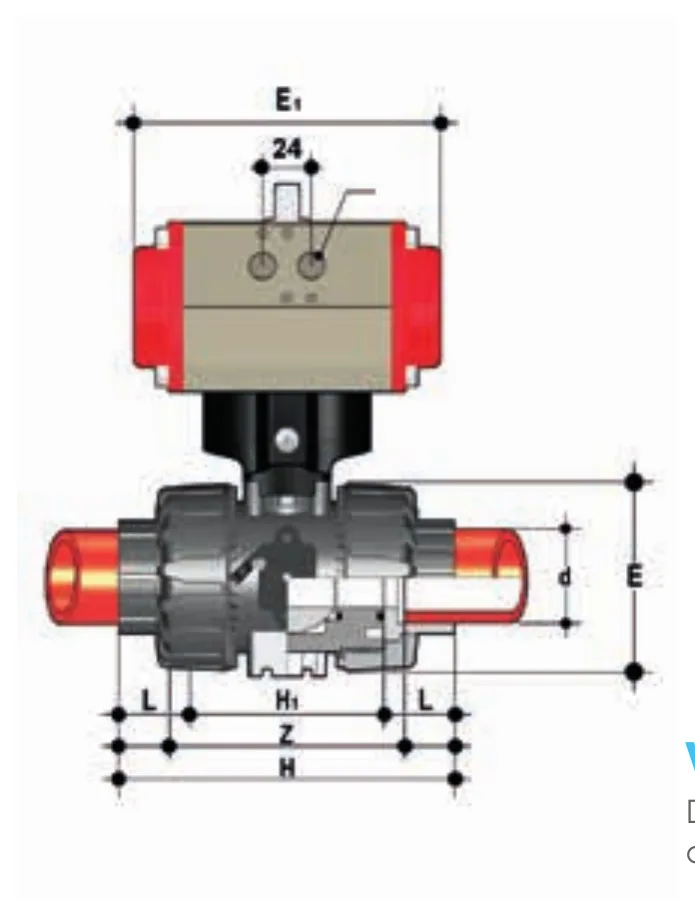

VKDIF/CP DA — DUAL BLOCK ball valve with female ends for socket welding, metric series, pneumatic actuator, Double-Acting
DUAL BLOCK® ball valve with female ends for socket welding, metric series with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDIFDA016F | 10 | 16 | 16 | 14 | 1200 g | PVDF |
| VKDIFDA020F | 15 | 20 | 16 | 15 | 1195 g | PVDF |
| VKDIFDA025F | 20 | 25 | 16 | 17 | 1533 g | PVDF |
| VKDIFDA032F | 25 | 32 | 16 | 19 | 1693 g | PVDF |
| VKDIFDA040F | 32 | 40 | 16 | 23 | 2591 g | PVDF |
| VKDIFDA050F | 40 | 50 | 16 | 24 | 2926 g | PVDF |
| VKDIFDA063F | 50 | 63 | 16 | 28 | 3711 g | PVDF |
