Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
7 dimensiuni DN

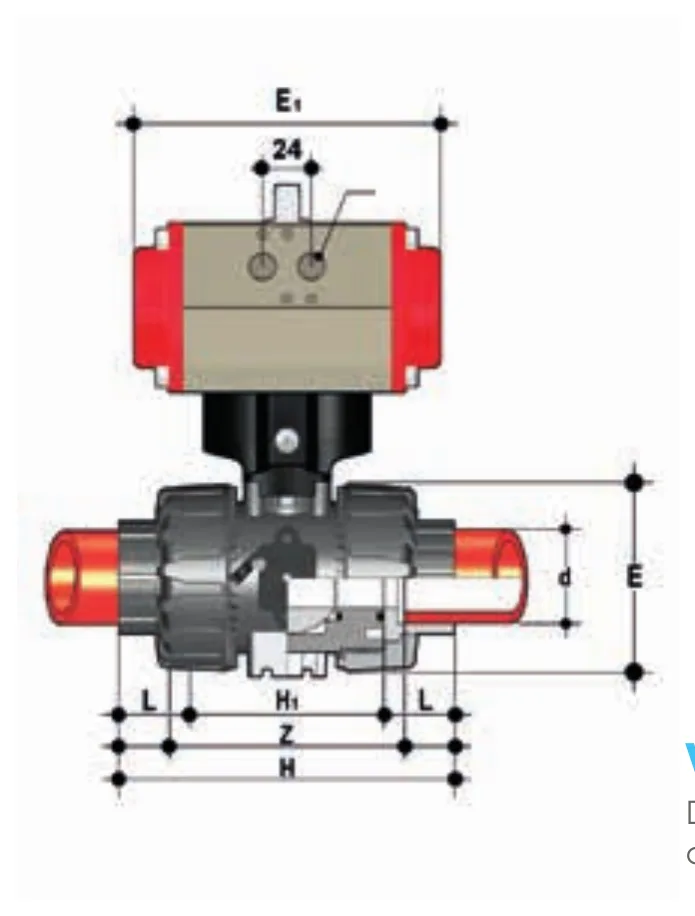

VKDIF/CP NO — DUAL BLOCK ball valve with female ends for socket welding, metric series, pneumatic actuator, Normally Open
DUAL BLOCK® ball valve with female ends for socket welding, metric series with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDIFNO016F | 10 | 16 | 16 | 14 | 1260 g | PVDF |
| VKDIFNO020F | 15 | 20 | 16 | 15 | 1255 g | PVDF |
| VKDIFNO025F | 20 | 25 | 16 | 17 | 1643 g | PVDF |
| VKDIFNO032F | 25 | 32 | 16 | 19 | 1803 g | PVDF |
| VKDIFNO040F | 32 | 40 | 16 | 23 | 2791 g | PVDF |
| VKDIFNO050F | 40 | 50 | 16 | 24 | 3126 g | PVDF |
| VKDIFNO063F | 50 | 63 | 16 | 28 | 3911 g | PVDF |
