Ball valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
7 dimensiuni DN

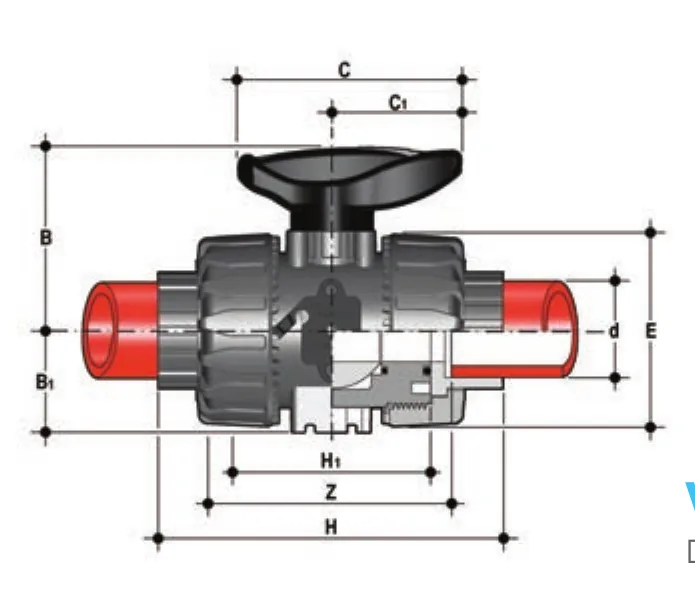

VKDIF — DUAL BLOCK 2-way ball valve, female ends for socket welding
DUAL BLOCK® 2-way ball valve with female ends for socket welding, metric series
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDIF016F | 10 | 16 | 16 | - | 291 g | PVDF |
| VKDIF020F | 15 | 20 | 16 | - | 272 g | PVDF |
| VKDIF025F | 20 | 25 | 16 | - | 445 g | PVDF |
| VKDIF032F | 25 | 32 | 16 | - | 584 g | PVDF |
| VKDIF040F | 32 | 40 | 16 | - | 938 g | PVDF |
| VKDIF050F | 40 | 50 | 16 | - | 1242 g | PVDF |
| VKDIF063F | 50 | 63 | 16 | - | 2187 g | PVDF |
