Ball valve
Material corp
PVC-C
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

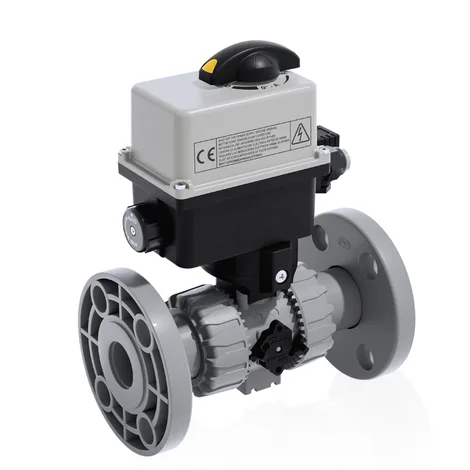

VKDOAC/CE 90-240 V AC — DUAL BLOCK® ball valve, free flanges EN/ISO/DIN PN 10/16, electric actuator
DUAL BLOCK® Ball Valve with free flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOACEM012E / VKDOACEM012F | 15 | 1/2” | 16 | - | 1792 g | PVC-C |
| VKDOACEM034E / VKDOACEM034F | 20 | 3/4” | 16 | - | 1923 g | PVC-C |
| VKDOACEM100E / VKDOACEM100F | 25 | 1” | 16 | - | 2043 g | PVC-C |
| VKDOACEM114E / VKDOACEM114F | 32 | 1” 1/4 | 16 | - | 2400 g | PVC-C |
| VKDOACEM112E / VKDOACEM112F | 40 | 1” 1/2 | 16 | - | 2688 g | PVC-C |
| VKDOACEM200E / VKDOACEM200F | 50 | 2” | *10 | - | 3311 g | PVC-C |
