Ball valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

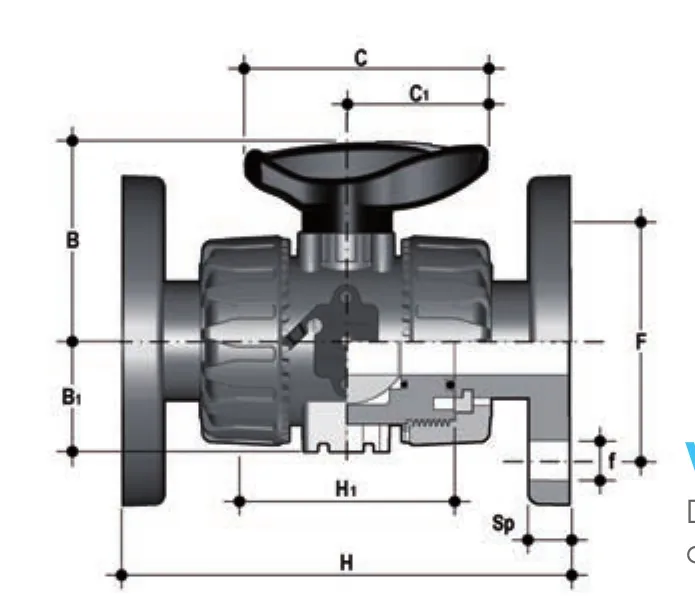

VKDOAC — DUAL BLOCK 2-way ball valve, fixed flanges ANSI B16.5 cl.150 #FF
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled ANSI B16.5 cl.150 #FF
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAC012E / VKDOAC012F | 15 | 1/2” | 16 | - | 481,1 g | PVC-C |
| VKDOAC034E / VKDOAC034F | 20 | 3/4” | 16 | - | 663,1 g | PVC-C |
| VKDOAC100E / VKDOAC100F | 25 | 1” | 16 | - | 895,9 g | PVC-C |
| VKDOAC114E / VKDOAC114F | 32 | 1” 1/4 | 16 | - | 1379 g | PVC-C |
| VKDOAC112E / VKDOAC112F | 40 | 1” 1/2 | 16 | - | 1761 g | PVC-C |
| VKDOAC200E / VKDOAC200F | 50 | 2” | 16 | - | 2741 g | PVC-C |
