Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

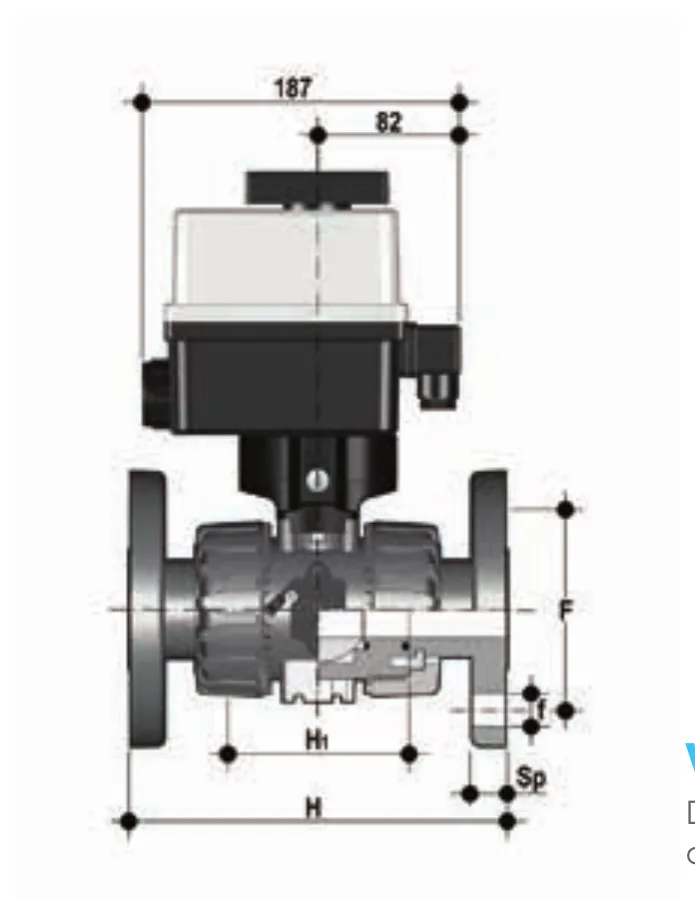

VKDOAF/CE 24 V AC/DC — DUAL BLOCK ball valve with fixed flanges, ANSI B16.5 cl.150#FF, electric actuator
VKDOAF/CE 24 V AC/DC DUAL BLOCK® ball valve with fixed flanges drilled ANSI B16.5 cl.150#FF with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAFEL012F | 15 | 1/2” | 16 | - | 1825 g | PVDF |
| VKDOAFEL034F | 20 | 3/4” | 16 | - | 1963 g | PVDF |
| VKDOAFEL100F | 25 | 1” | 16 | - | 2123 g | PVDF |
| VKDOAFEL114F | 32 | 1” 1/4 | 16 | - | 2491 g | PVDF |
| VKDOAFEL112F | 40 | 1” 1/2 | 16 | - | 2826 g | PVDF |
| VKDOAFEL200F | 50 | 2” | *10 | - | 3611 g | PVDF |
