Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

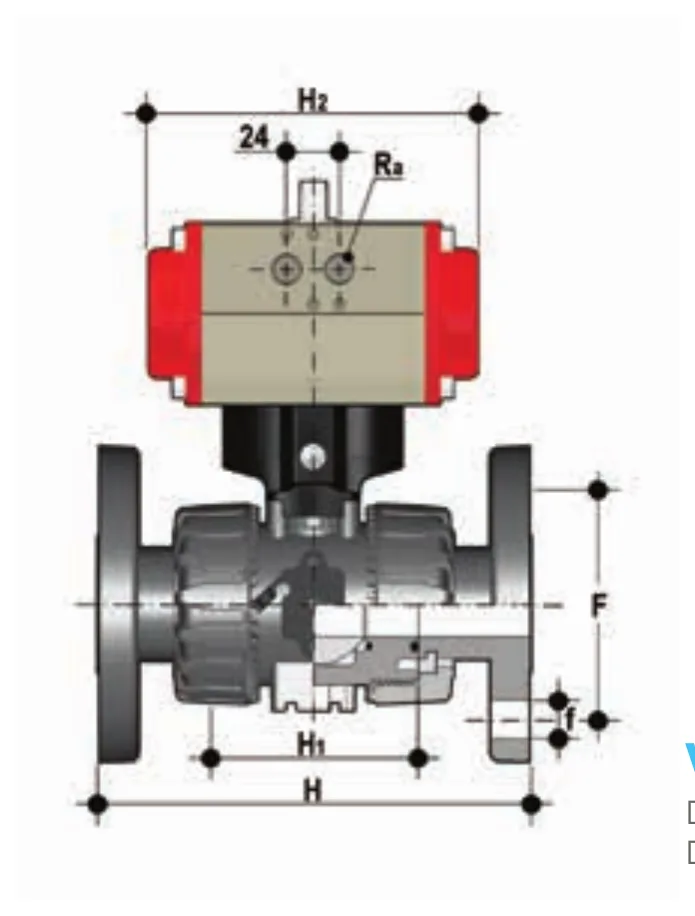

VKDOAF/CP NC — DUAL BLOCK ball valve, fixed flanges ANSI B16.5 cl.150#FF, pneumatic actuator, Normally Closed
DUAL BLOCK® ball valve with fixed flanges drilled ANSI B16.5 cl.150#FF with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAFNC012F | 15 | 1/2” | 16 | - | 1255 g | PVDF |
| VKDOAFNC034F | 20 | 3/4” | 16 | - | 1643 g | PVDF |
| VKDOAFNC100F | 25 | 1” | 16 | - | 1803 g | PVDF |
| VKDOAFNC114F | 32 | 1” 1/4 | 16 | - | 2791 g | PVDF |
| VKDOAFNC112F | 40 | 1” 1/2 | 16 | - | 3126 g | PVDF |
| VKDOAFNC200F | 50 | 2” | 16 | - | 3911 g | PVDF |
