Ball valve
Material corp
PVDF
Material etanșare
FKM code
Variante disponibile
6 dimensiuni DN

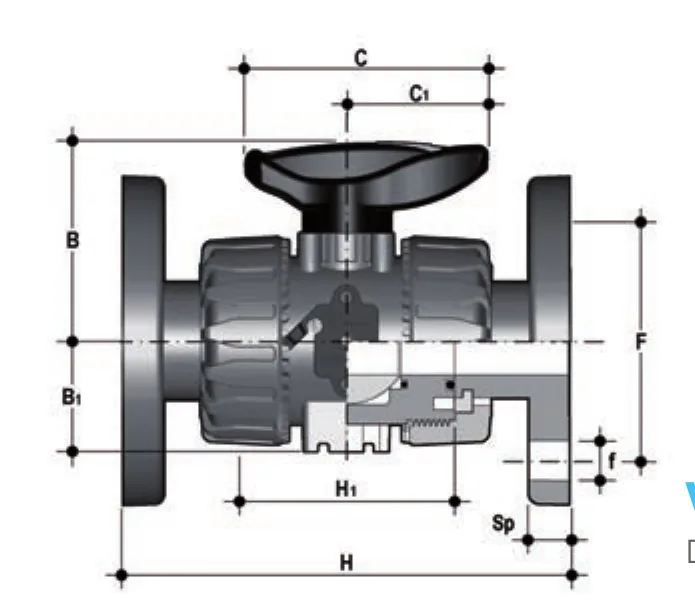

VKDOAF — DUAL BLOCK 2-way ball valve, fixed flanges ANSI B16.5 cl.150 #FF
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled ANSI B16.5 cl.150 #FF
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAF012F | 15 | 1/2” | 16 | - | 547 g | PVDF |
| VKDOAF034F | 20 | 3/4” | 16 | - | 772 g | PVDF |
| VKDOAF100F | 25 | 1” | 16 | - | 1024 g | PVDF |
| VKDOAF114F | 32 | 1” 1/4 | 16 | - | 1583 g | PVDF |
| VKDOAF112F | 40 | 1” 1/2 | 16 | - | 2024 g | PVDF |
| VKDOAF200F | 50 | 2” | 16 | - | 3219 g | PVDF |
