Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

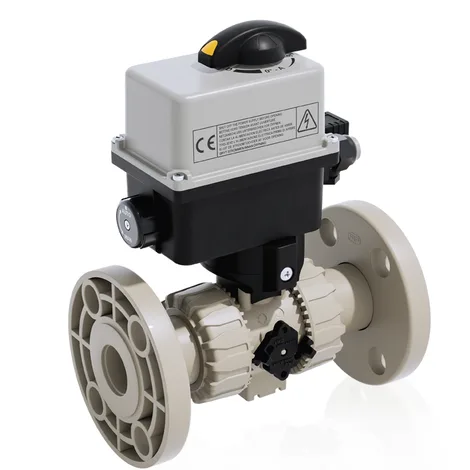

VKDOAM/CE 90-240 V AC — DUAL BLOCK ball valve, fixed flanges ANSI B16.5, multi-volt electric actuator
DUAL BLOCK® ball valve with fixed flanges, drilled ANSI B16.5 cl.150#FF with multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAMEM012E / VKDOAMEM012F | 15 | 1/2” | 10 | - | 1715 g | PP-H |
| VKDOAMEM034E / VKDOAMEM034F | 20 | 3/4” | 10 | - | 1791 g | PP-H |
| VKDOAMEM100E / VKDOAMEM100F | 25 | 1” | 10 | - | 1871 g | PP-H |
| VKDOAMEM114E / VKDOAMEM114F | 32 | 1” 1/4 | 10 | - | 2156 g | PP-H |
| VKDOAMEM112E / VKDOAMEM112F | 40 | 1” 1/2 | 10 | - | 2358 g | PP-H |
| VKDOAMEM200E / VKDOAMEM200F | 50 | 2” | 10 | - | 2807 g | PP-H |
