Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

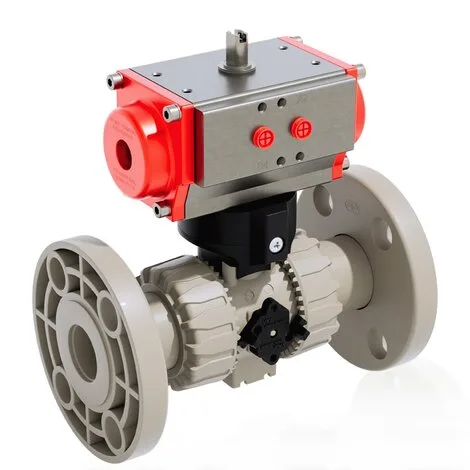

VKDOAM/CP NC — DUAL BLOCK ball valve with fixed flanges ANSI B16.5 cl.150#FF, pneumatic actuator, Normally Closed
DUAL BLOCK® ball valve with fixed flanges drilled ANSI B16.5 cl.150#FF with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

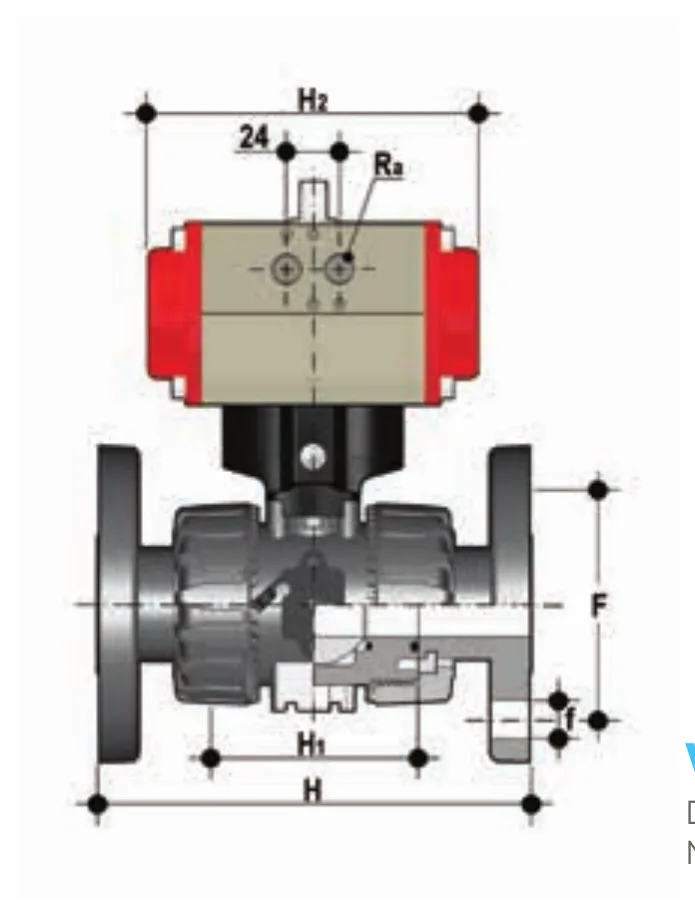

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAMNC012E / VKDOAMNC012F | 15 | 1/2” | 10 | - | 1145 g | PP-H |
| VKDOAMNC034E / VKDOAMNC034F | 20 | 3/4” | 10 | - | 1471 g | PP-H |
| VKDOAMNC100E / VKDOAMNC100F | 25 | 1” | 10 | - | 1551 g | PP-H |
| VKDOAMNC114E / VKDOAMNC114F | 32 | 1” 1/4 | 10 | - | 2456 g | PP-H |
| VKDOAMNC112E / VKDOAMNC112F | 40 | 1” 1/2 | 10 | - | 2658 g | PP-H |
| VKDOAMNC200E / VKDOAMNC200F | 50 | 2” | 10 | - | 3107 g | PP-H |
