Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

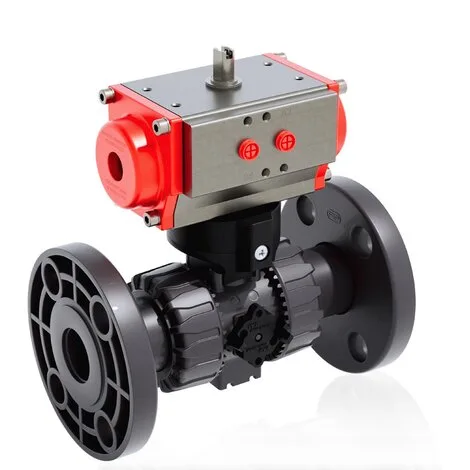

VKDOAV/CP NC — DUAL BLOCK ball valve, fixed flanges ANSI B16.5 cl.150#FF, pneumatic actuator Normally Closed
VKDOAV/CP NC DUAL BLOCK® ball valve with fixed flanges drilled ANSI B16.5 cl.150#FF with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAVNC012E / VKDOAVNC012F | 15 | 1/2” | 16 | - | 1205 g | PVC-U |
| VKDOAVNC034E / VKDOAVNC034F | 20 | 3/4” | 16 | - | 1583 g | PVC-U |
| VKDOAVNC100E / VKDOAVNC100F | 25 | 1” | 16 | - | 1691 g | PVC-U |
| VKDOAVNC114E / VKDOAVNC114F | 32 | 1” 1/4 | 16 | - | 2669 g | PVC-U |
| VKDOAVNC112E / VKDOAVNC112F | 40 | 1” 1/2 | 16 | - | 2901 g | PVC-U |
| VKDOAVNC200E / VKDOAVNC200F | 50 | 2” | 16 | - | 3518 g | PVC-U |
