Ball valve
Material corp
PVC-U
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

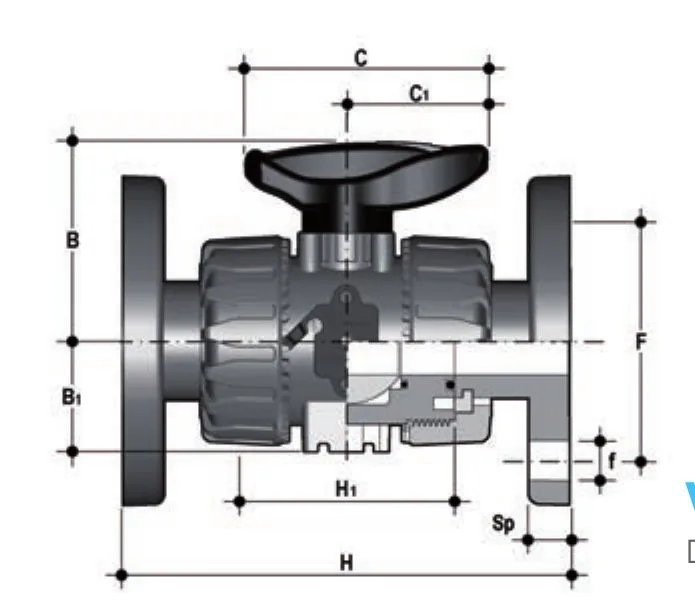

VKDOAV — DUAL BLOCK 2-way ball valve with fixed flange, drilled ANSI B16.5 cl.150#FF
DUAL BLOCK® 2-way ball valve with fixed flange, drilled ANSI B16.5 cl.150#FF
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOAV012E / VKDOAV012F | 15 | 1/2” | 16 | - | 460 g | PVC-U |
| VKDOAV034E / VKDOAV034F | 20 | 3/4” | 16 | - | 632 g | PVC-U |
| VKDOAV100E / VKDOAV100F | 25 | 1” | 16 | - | 853 g | PVC-U |
| VKDOAV114E / VKDOAV114F | 32 | 1” 1/4 | 16 | - | 1313 g | PVC-U |
| VKDOAV112E / VKDOAV112F | 40 | 1” 1/2 | 16 | - | 1669 g | PVC-U |
| VKDOAV200E / VKDOAV200F | 50 | 2” | 16 | - | 2577 g | PVC-U |
