Ball valve
Material corp
PVC-C
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

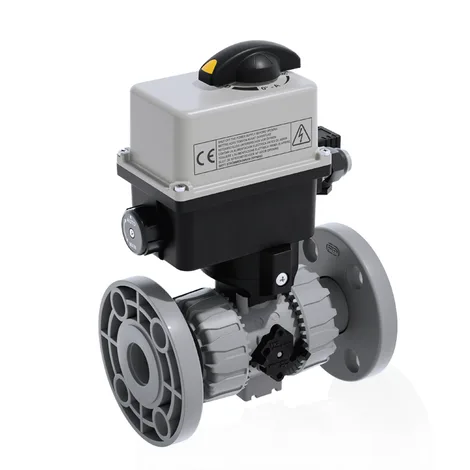

VKDOC/CE 24 V AC/DC — DUAL BLOCK® ball valve, fixed flanges EN/ISO/DIN PN 10/16, electric actuator 24 V AC/DC
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOCEL020E / VKDOCEL020F | 15 | 20 | 16 | - | 1792 g | PVC-C |
| VKDOCEL025E / VKDOCEL025F | 20 | 25 | 16 | - | 1923 g | PVC-C |
| VKDOCEL032E / VKDOCEL032F | 25 | 32 | 16 | - | 2043 g | PVC-C |
| VKDOCEL040E / VKDOCEL040F | 32 | 40 | 16 | - | 2400 g | PVC-C |
| VKDOCEL050E / VKDOCEL050F | 40 | 50 | 16 | - | 2688 g | PVC-C |
| VKDOCEL063E / VKDOCEL063F | 50 | 63 | *10 | - | 3311 g | PVC-C |
