Ball valve
Material corp
PVC-C
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

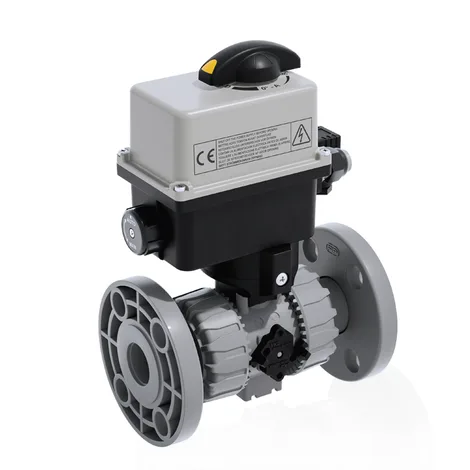

VKDOC/CE 90-240 V AC — DUAL BLOCK® ball valve, fixed flanges EN/ISO/DIN PN 10/16, multi-volt electric actuator 90-240 V AC
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOCEM020E / VKDOCEM020F | 15 | 20 | 16 | - | 1792 g | PVC-C |
| VKDOCEM025E / VKDOCEM025F | 20 | 25 | 16 | - | 1923 g | PVC-C |
| VKDOCEM032E / VKDOCEM032F | 25 | 32 | 16 | - | 2043 g | PVC-C |
| VKDOCEM040E / VKDOCEM040F | 32 | 40 | 16 | - | 2400 g | PVC-C |
| VKDOCEM050E / VKDOCEM050F | 40 | 50 | 16 | - | 2688 g | PVC-C |
| VKDOCEM063E / VKDOCEM063F | 50 | 63 | *10 | - | 3311 g | PVC-C |
