Ball valve
Material corp
PVC-C
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

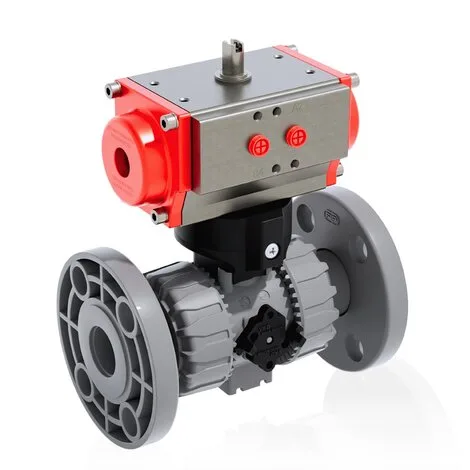

VKDOC/CP DA — DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Double-Acting function
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOCDA020E / VKDOCDA020F | 15 | 20 | 16 | - | 1162 g | PVC-C |
| VKDOCDA025E / VKDOCDA025F | 20 | 25 | 16 | - | 1493 g | PVC-C |
| VKDOCDA032E / VKDOCDA032F | 25 | 32 | 16 | - | 1613 g | PVC-C |
| VKDOCDA040E / VKDOCDA040F | 32 | 40 | 16 | - | 2500 g | PVC-C |
| VKDOCDA050E / VKDOCDA050F | 40 | 50 | 16 | - | 2788 g | PVC-C |
| VKDOCDA063E / VKDOCDA063F | 50 | 63 | 16 | - | 3411 g | PVC-C |
