Ball valve
Material corp
PVC-C
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

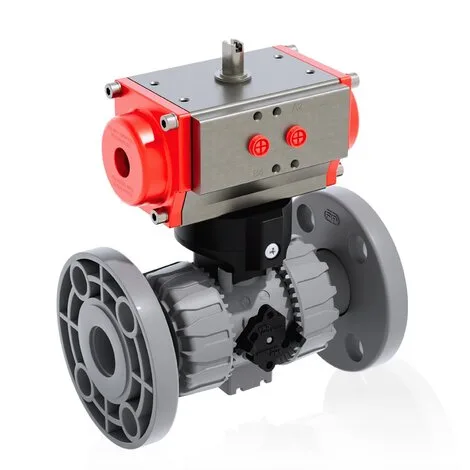

VKDOC/CP NO — DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Open function
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOCNO020E / VKDOCNO020F | 15 | 20 | 16 | - | 1222 g | PVC-C |
| VKDOCNO025E / VKDOCNO025F | 20 | 25 | 16 | - | 1603 g | PVC-C |
| VKDOCNO032E / VKDOCNO032F | 25 | 32 | 16 | - | 1723 g | PVC-C |
| VKDOCNO040E / VKDOCNO040F | 32 | 40 | 16 | - | 2700 g | PVC-C |
| VKDOCNO050E / VKDOCNO050F | 40 | 50 | 16 | - | 2988 g | PVC-C |
| VKDOCNO063E / VKDOCNO063F | 50 | 63 | 16 | - | 3611 g | PVC-C |
