Ball valve
Material corp
PVC-C
Material etanșare
EPDM code / FKM code
Variante disponibile
3 dimensiuni DN

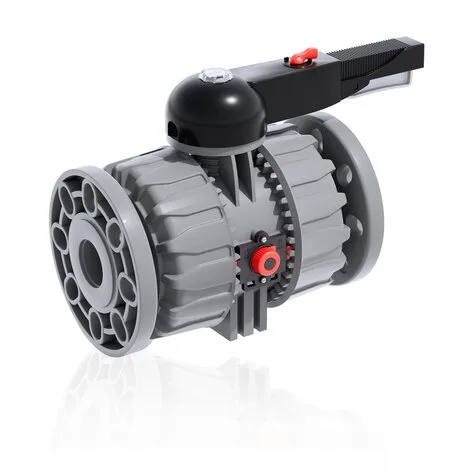

VKDOC — DUAL BLOCK 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOC075E / VKDOC075F | 65 | 75 | 16 | - | 6413 g | PVC-C |
| VKDOC090E / VKDOC090F | 80 | 90 | 16 | - | 9669 g | PVC-C |
| VKDOC110E / VKDOC110F | 100 | 110 | 16 | - | 14967 g | PVC-C |
