Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN
VKDOF/CE 90-240 V AC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PVDF, multi-volt electric actuator

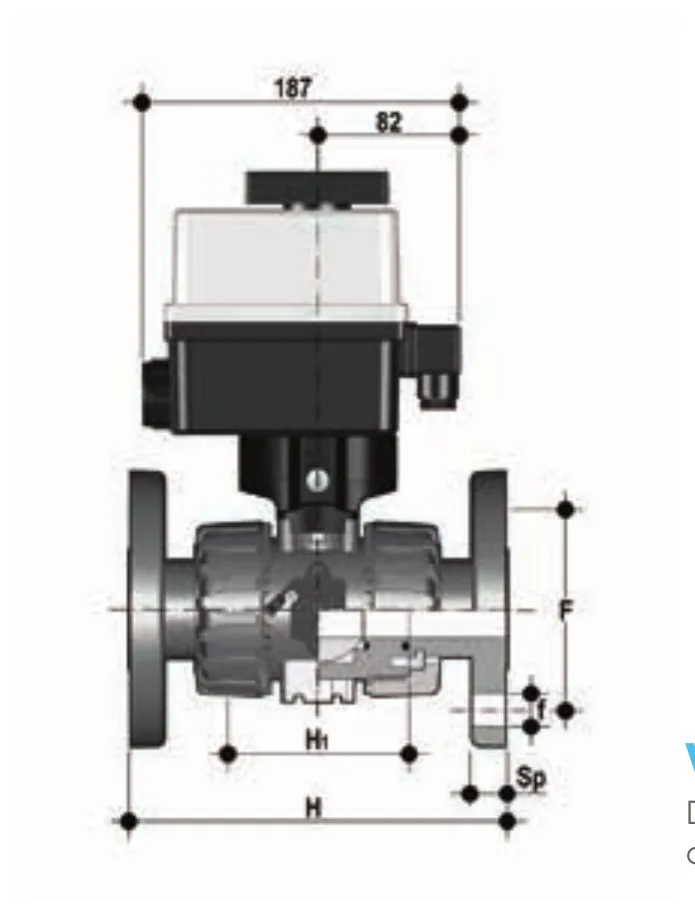

DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with multi-volt electric actuator 90-240 V AC 50-60 Hz
Caracteristici Tehnice
* PN 16 upon request
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOFEM020F | 15 | 20 | 16 | - | 1825 g | PVDF |
| VKDOFEM025F | 20 | 25 | 16 | - | 1963 g | PVDF |
| VKDOFEM032F | 25 | 32 | 16 | - | 2123 g | PVDF |
| VKDOFEM040F | 32 | 40 | 16 | - | 2491 g | PVDF |
| VKDOFEM050F | 40 | 50 | 16 | - | 2826 g | PVDF |
| VKDOFEM063F | 50 | 63 | *10 | - | 3611 g | PVDF |
