Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

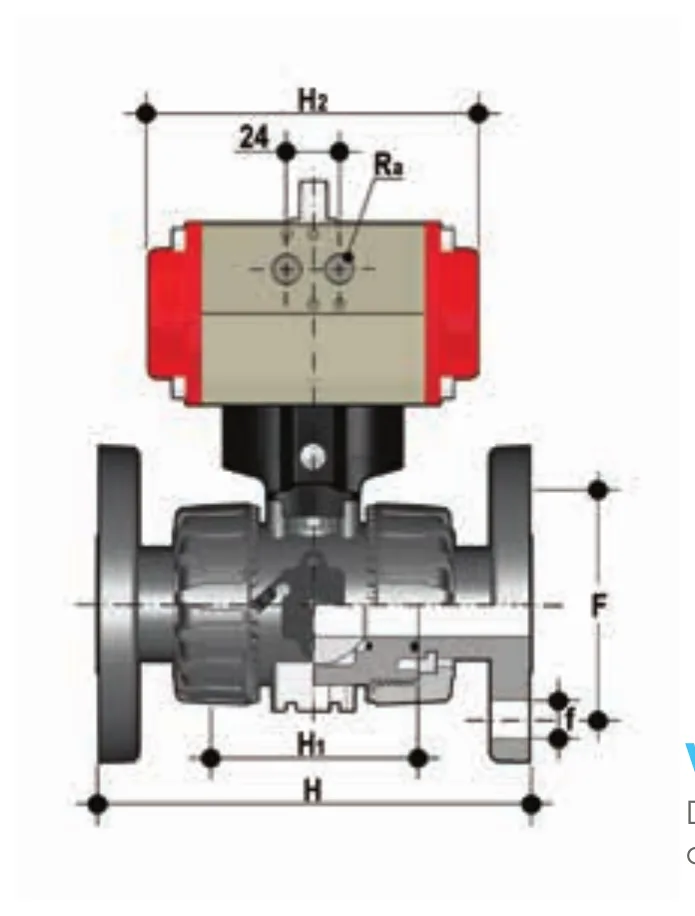

VKDOF/CP NC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator, Normally Closed
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOFNC020F | 15 | 20 | 16 | - | 1255 g | PVDF |
| VKDOFNC025F | 20 | 25 | 16 | - | 1643 g | PVDF |
| VKDOFNC032F | 25 | 32 | 16 | - | 1803 g | PVDF |
| VKDOFNC040F | 32 | 40 | 16 | - | 2791 g | PVDF |
| VKDOFNC050F | 40 | 50 | 16 | - | 3126 g | PVDF |
| VKDOFNC063F | 50 | 63 | 16 | - | 3911 g | PVDF |
