Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

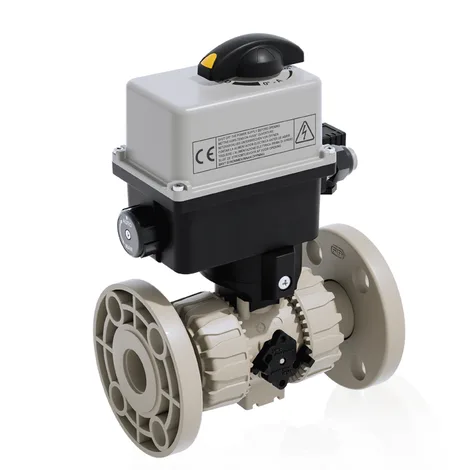

VKDOM/CE 24 V AC/DC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN, electric actuator
DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMEL020E / VKDOMEL020F | 15 | 20 | 10 | - | 1715 g | PP-H |
| VKDOMEL025E / VKDOMEL025F | 20 | 25 | 10 | - | 1791 g | PP-H |
| VKDOMEL032E / VKDOMEL032F | 25 | 32 | 10 | - | 1871 g | PP-H |
| VKDOMEL040E / VKDOMEL040F | 32 | 40 | 10 | - | 2156 g | PP-H |
| VKDOMEL050E / VKDOMEL050F | 40 | 50 | 10 | - | 2358 g | PP-H |
| VKDOMEL063E / VKDOMEL063F | 50 | 63 | 10 | - | 2807 g | PP-H |
