Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
3 dimensiuni DN

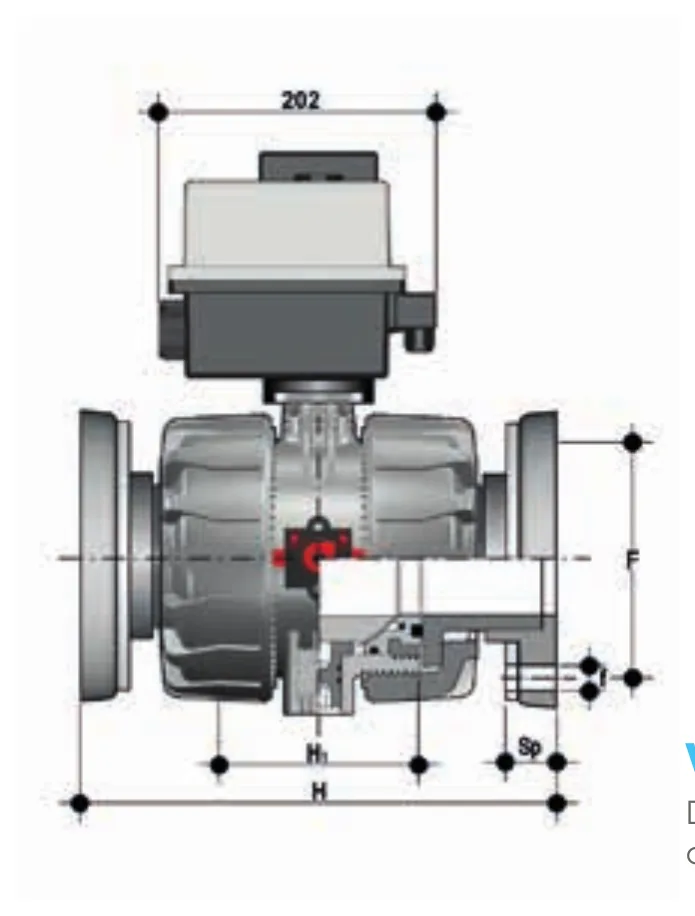

VKDOM/CE 24 V AC/DC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, electric actuator
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMEL075E / VKDOMEL075F | 65 | 75 | 10 | - | 6920 g | PP-H |
| VKDOMEL090E / VKDOMEL090F | 80 | 90 | 10 | - | 8875 g | PP-H |
| VKDOMEL110E / VKDOMEL110F | 100 | 110 | 10 | - | 11410 g | PP-H |
