Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

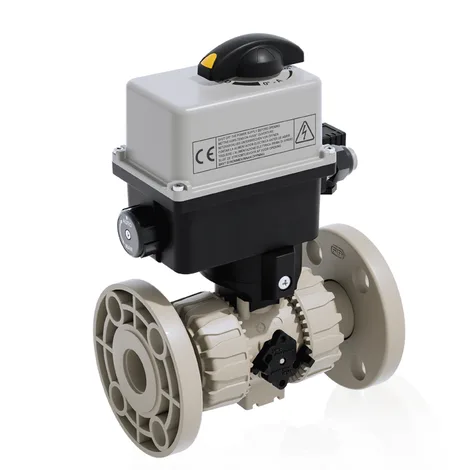

VKDOM/CE 90-240 V AC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN, multi-volt electric actuator
DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMEM020E / VKDOMEM020F | 15 | 20 | 10 | - | 1715 g | PP-H |
| VKDOMEM025E / VKDOMEM025F | 20 | 25 | 10 | - | 1791 g | PP-H |
| VKDOMEM032E / VKDOMEM032F | 25 | 32 | 10 | - | 1871 g | PP-H |
| VKDOMEM040E / VKDOMEM040F | 32 | 40 | 10 | - | 2156 g | PP-H |
| VKDOMEM050E / VKDOMEM050F | 40 | 50 | 10 | - | 2358 g | PP-H |
| VKDOMEM063E / VKDOMEM063F | 50 | 63 | 10 | - | 2807 g | PP-H |
