Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

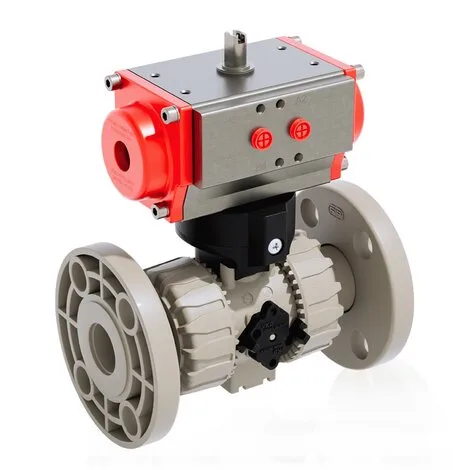

VKDOM/CP DA — DUAL BLOCK ball valve with fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator, Double-Acting

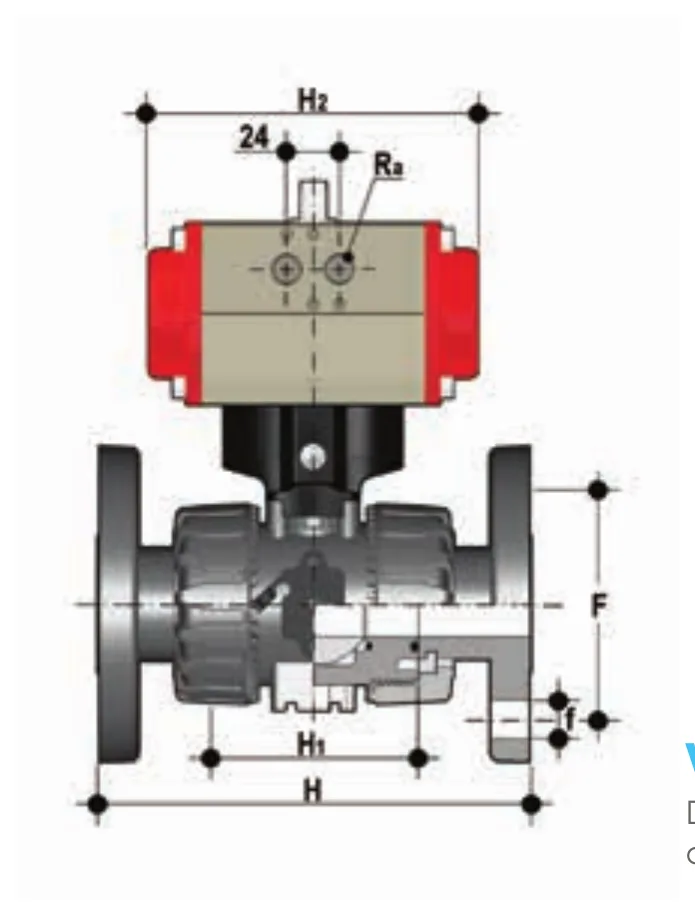

DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMDA020E / VKDOMDA020F | 15 | 20 | 10 | - | 1085 g | PP-H |
| VKDOMDA025E / VKDOMDA025F | 20 | 25 | 10 | - | 1361 g | PP-H |
| VKDOMDA032E / VKDOMDA032F | 25 | 32 | 10 | - | 1441 g | PP-H |
| VKDOMDA040E / VKDOMDA040F | 32 | 40 | 10 | - | 2256 g | PP-H |
| VKDOMDA050E / VKDOMDA050F | 40 | 50 | 10 | - | 2458 g | PP-H |
| VKDOMDA063E / VKDOMDA063F | 50 | 63 | 10 | - | 2907 g | PP-H |
