Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
3 dimensiuni DN

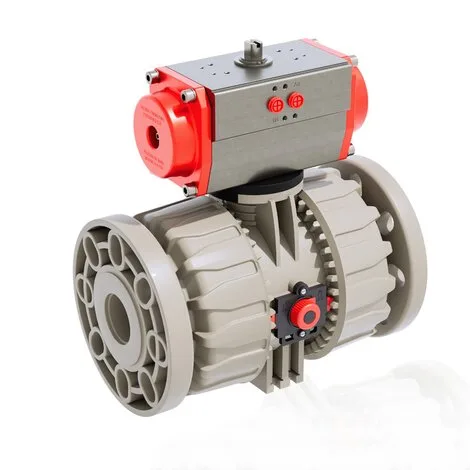

VKDOM/CP NC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator Normally Closed
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Closed function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMNC075E / VKDOMNC075F | 65 | 75 | 10 | - | 7290 g | PP-H |
| VKDOMNC090E / VKDOMNC090F | 80 | 90 | 10 | - | 10705 g | PP-H |
| VKDOMNC110E / VKDOMNC110F | 100 | 110 | 10 | - | 15230 g | PP-H |
