Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

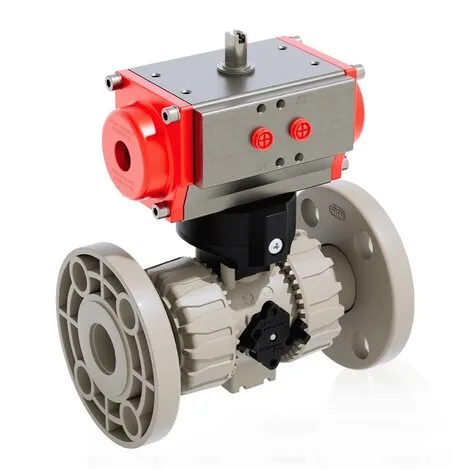

VKDOM/CP NO — DUAL BLOCK ball valve with fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator, Normally Open
DUAL BLOCK® Ball Valve with fixed flanges, drilled EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOMNO020E / VKDOMNO020F | 15 | 20 | 10 | - | 1145 g | PP-H |
| VKDOMNO025E / VKDOMNO025F | 20 | 25 | 10 | - | 1471 g | PP-H |
| VKDOMNO032E / VKDOMNO032F | 25 | 32 | 10 | - | 1551 g | PP-H |
| VKDOMNO040E / VKDOMNO040F | 32 | 40 | 10 | - | 2456 g | PP-H |
| VKDOMNO050E / VKDOMNO050F | 40 | 50 | 10 | - | 2658 g | PP-H |
| VKDOMNO063E / VKDOMNO063F | 50 | 63 | 10 | - | 3107 g | PP-H |
