Ball valve
Material corp
PP-H
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

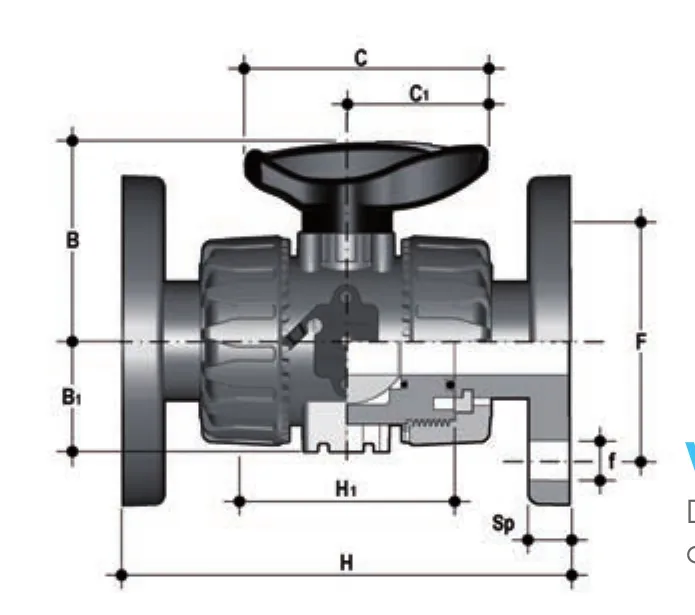

VKDOM — DUAL BLOCK 2-way ball valve, fixed flanges drilled EN/ISO/DIN PN 10/16
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN 10/16. Face to face according to EN 558-1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOM020E / VKDOM020F | 15 | 20 | 10 | - | 387 g | PP-H |
| VKDOM025E / VKDOM025F | 20 | 25 | 10 | - | 504 g | PP-H |
| VKDOM032E / VKDOM032F | 25 | 32 | 10 | - | 697 g | PP-H |
| VKDOM040E / VKDOM040F | 32 | 40 | 10 | - | 1075 g | PP-H |
| VKDOM050E / VKDOM050F | 40 | 50 | 10 | - | 1346 g | PP-H |
| VKDOM063E / VKDOM063F | 50 | 63 | 10 | - | 2060 g | PP-H |
