Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

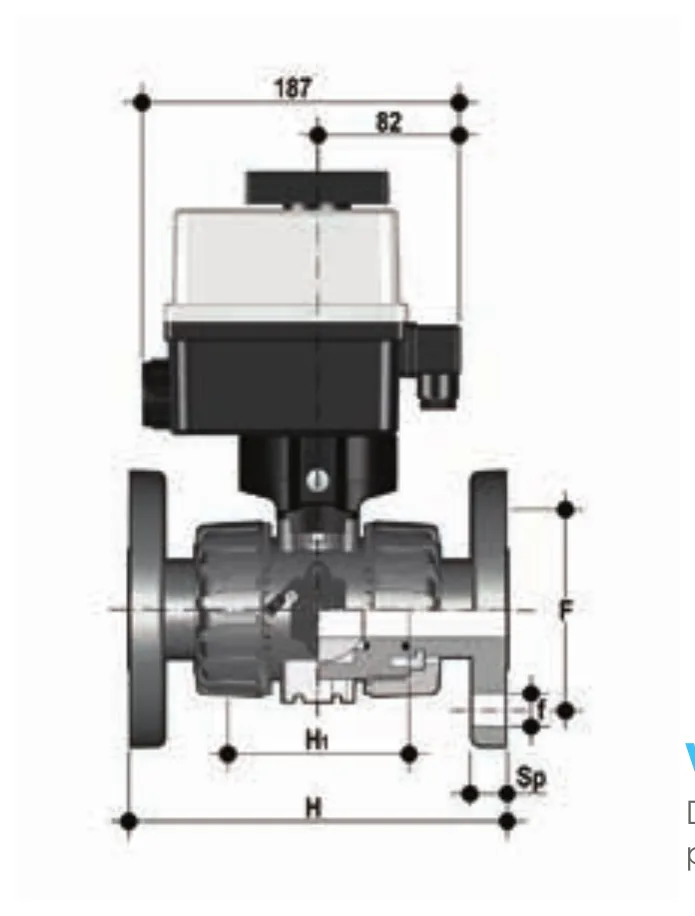

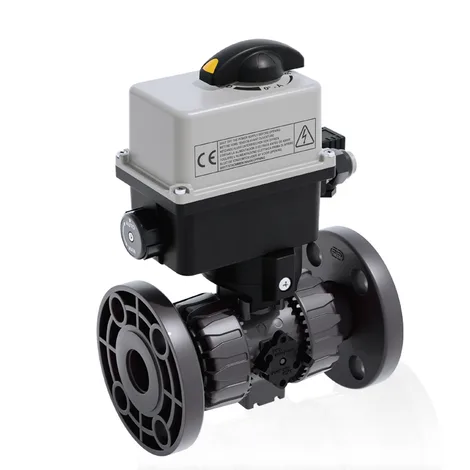

VKDOV/CE 24 V AC/DC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN, electric actuator
DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with electric actuator 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOVEL020E / VKDOVEL020F | 15 | 20 | 16 | - | 1775 g | PVC-U |
| VKDOVEL025E / VKDOVEL025F | 20 | 25 | 16 | - | 1903 g | PVC-U |
| VKDOVEL032E / VKDOVEL032F | 25 | 32 | 16 | - | 2011 g | PVC-U |
| VKDOVEL040E / VKDOVEL040F | 32 | 40 | 16 | - | 2369 g | PVC-U |
| VKDOVEL050E / VKDOVEL050F | 40 | 50 | 16 | - | 2601 g | PVC-U |
| VKDOVEL063E / VKDOVEL063F | 50 | 63 | *10 | - | 3218 g | PVC-U |
