Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

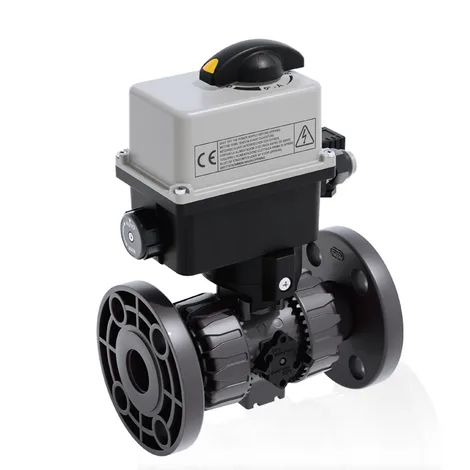

VKDOV/CE 90-240 V AC — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN, multi-volt electric actuator
DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOVEM020E / VKDOVEM020F | 15 | 20 | 16 | - | 1775 g | PVC-U |
| VKDOVEM025E / VKDOVEM025F | 20 | 25 | 16 | - | 1903 g | PVC-U |
| VKDOVEM032E / VKDOVEM032F | 25 | 32 | 16 | - | 2011 g | PVC-U |
| VKDOVEM040E / VKDOVEM040F | 32 | 40 | 16 | - | 2369 g | PVC-U |
| VKDOVEM050E / VKDOVEM050F | 40 | 50 | 16 | - | 2601 g | PVC-U |
| VKDOVEM063E / VKDOVEM063F | 50 | 63 | *10 | - | 3218 g | PVC-U |
